In a busy Omics research lab or MS core facility, there are often a diverse range of projects to run during a single week. Therefore, the ability to easily switch between LC-MS workflows can help improve productivity. For routine projects where ample material is available, it is often useful to use microflow LC to analyze samples with accelerated throughput. This can free up time to spend on more complex, higher sensitivity projects that require nanoflow LC.

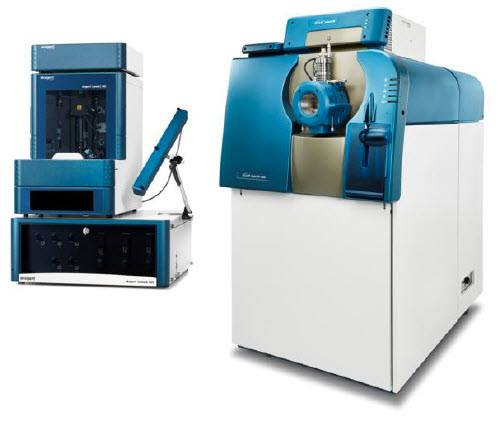

OptiFlow™ Interface together with the nanoLC™ 425 System enables switching between LC-MS workflows in minutes, enhancing overall system productivity. After removing the NanoSpray® Source, the nanoflow curtain plate and heater can be quickly removed from the universal interface plate (Figure 1), then replaced with the high flow curtain plate and Turbo V™ Source. Since the new OptiFlow interface plate stays in place, there is no vacuum break required, allowing the switch to higher flow applications to be performed in minutes.

Protein Load Testing

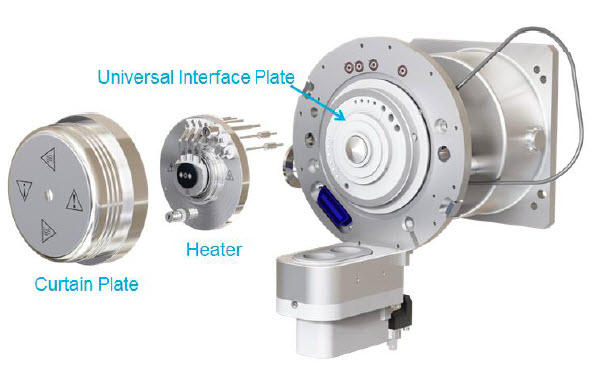

Figure 1. OptiFlow™ Interface for Rapid Switching Between High Flow and Low Flow Sources.
Easily switch between all front end operational modes in minutes, without having to break vacuum. For low flow applications, remove the high flow Curtain Plate, then install the OptiFlow Interface heater onto the Universal Interface Plate, and finally install the nanoflow Curtain Plate. Either NanoSpray® Source or Digital PicoView sources can then be used for performing nanoflow LC-MS workflows.

Key Features for the OptiFlow™ Interface

  • With this universal interface plate, users can switch between ionization sources in minutes, without breaking the MS vacuum
    • No tools required
    • Use the Turbo V™ Source for high flow applications
    • NanoSpray® Source or Digital PicoView source for low flow applications
    • SelexION® Technology for performing differential mobility separation experiments
  • Using the nanoLC™ 425 System, user effectively has two LC systems in one
    • High performance dual gradient system with the flexibility and reliability to support a broad range of Omics workflows 1
    • Set up system with one channel in nanoflow mode and the other channel in Microflow mode 2
    • Switch LC between flow regimes in minutes 3
  • Coupled with the TripleTOF® 6600 System for global discovery and targeted quantitative applications

Equivalent or Better Performance on OptiFlow™ Interface vs nanoDCI Interface

To confirm the performance of the nanoflow heater and curtain plate for the OptiFlow Interface were equivalent or better than the previous nanoDCI heater and curtain plate, multiple OptiFlow interfaces were compared to the nanoDCI on a single TripleTOF® 6600 system using the standard tests described in the SWATH® Acquisition Performance Kit 4 .

First, the PepCalMix was run by nanoflow LC-MS at two different concentrations on the multiple interfaces for comparison. The peptide areas from the OptiFlow Interfaces were compared to the signal obtained from the nanoDCI interface (Figure 2) and the ratios were found to be equivalent or greater than 1, indicating equivalence or better performance. This was observed at both the higher (20 fmol) and lower (20 amol) loadings on column. Three replicate injections were performed for each tests and similar %CV were also observed. When the ratios were compared for the individual peptides (Figure 2), very similar performance patterns were observed across the peptide properties and retention times.

SWATH® Acquisition tests were also performed using a complex cell lysate digest, this time comparing two OptiFlow™ Interfaces to the nanoDCI interface on a single TripleTOF 6600 system. Similar peptide area distributions were observed across the replicates of the 3 tests (Figure 3), measuring over 10000 peptides. This similarity in peptide areas resulted in similar numbers of peptides and proteins quantified at a <1%FDR and <20% CV across the three tests (Figure 3, table). Also the cumulative CV curves were compared and in all 3 tests, ~90% of the peptide/protein data had reproducibility of better than 20%CV across the replicates performed, confirming both the performance and the robustness of the SWATH acquisition workflow with the OptiFlow Interface.

Figure 2. Peptide Performance Testing Shows Equivalent or Better Performance using the OptiFlow™ Interface.
Multiple OptiFlow interfaces were installed on a single TripleTOF 6600 system, to measure LC-MS performance for PepCalMix relative to the original nano DCI interface (Top). Using two different sample loading amounts, very similar performance was observed overall (average ratio vs nanoDCI in table) with an average ratio of 1.6.
Figure 3. SWATH® Acquisition Performance Testing Across Multiple OptiFlow™ Interfaces.

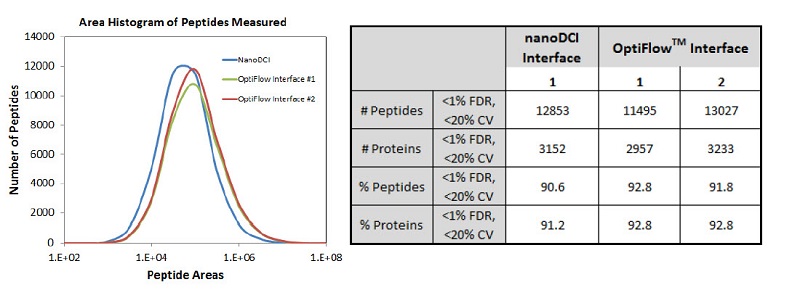

Using the SWATH Performance kit, the quantitative performance of two OptiFlow interfaces was compared to the original nanoDCI interface on a single TripleTOF 6600 system. Similar peptide area distributions were measured on the 3 interfaces (top) resulting in very similar # of proteins and peptides were quantified in all three tests (Table).


OptiFlow™ Interface together with the nanoLC™ 425 System enables switching between LC-MS workflows in minutes, enhancing system productivity for the busy research lab. Results here outline some of the validation work that was performed to confirm the performance of the OptiFlow™ Interface was equivalent or better than the original nanoDCI interface. For a simple peptide mixture or a complex digested cell lysate, similar peptide signal intensity was observed between the different interfaces when tested on the same TripleTOF® 6600 System.
