Abstract

Abstract

This technical note describes an introduction to the peptide mapping workflow templates within the Biologics Explorer software (v.1.0.2) along with some of their most common applications. Described are the key differences between the workflows that allow either quick assessment or in-depth investigation. In addition, an overview of the diverse tools for data visualization and interrogation is provided.

Introduction

Introduction

Significant research investment and technological innovation have made messenger ribonucleic acid (mRNA) a promising therapeutic tool in vaccine development and protein replacement therapy.¹ The development and quality control phases of producing therapeutic RNA-based molecules each require extensive characterization of the molecules produced. Accelerated analysis of characterization can save significant amount of time which is crucial for the fast RNA based vaccine development. Here, a multi-capillary capillary electrophoresis (CE) system, BioPhase 8800 system, is used to efficiently separate a wide range of RNA-based molecules by size and demonstrates the multiplex capability for RNA characterization.

The vaccine has been the most successful medical approach for preventing and controlling the spread of infectious diseases,² including the pandemic-causing severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2). Multiple Covid-19 vaccines have been authorized for emergency use, including mRNA vaccines that have been highly effective in controlling SARS-CoV-2. Relative to vaccines that utilize inactivated viruses, purified antigenic subunits of pathogens or DNA to induce immunity, mRNA vaccines offer advantages in safety, efficacy, development speed and large-scale production capability.¹

Promising results suggest that mRNA can stimulate immune responses to protect against both the influenza virus and Human Immunodeficiency Virus (HIV)^3-6, in addition to serving as an immunotherapy for some types of cancer.^7,8 However, the ubiquitous ribonucleases effect and inherent instability of RNA molecules can cause degradation of RNA structure during preparation, processing, formulation and long-term storage. Thus, it is crucial to characterize the size of therapeutic RNA molecules to ensure their quality, efficacy, safety and optimize the manufacturing process.⁹ CE provides fast, robust and high-resolution separation of nucleic acids and can determine size, integrity and purity. The multi-capillary BioPhase 8800 system, which can analyze 8 samples in parallel with the reproducibility, accuracy and resolution required for RNA characterization, is therefore suitable for the high-throughput analyses needed for rapid vaccine development (Figure 1).

Key-features

Key features of the peptide mapping workflows within the Biologics Explorer software

• Streamlined and easy-to-use: Predefined processing settings, customized for SCIEX QTOF MS and MS/MS data, leverage an accelerated path for the optimization of biologics-specific data processing methods
• New depth of peptide mapping analysis: Distinct workflow structures support diverse analytical biotherapeutic applications, from discovery and development through to production and quality attribute monitoring. Four peptide mapping workflow templates are provided:
  1.PeptideMapping_Simple
  2.PeptideMapping_Extended
  3.PeptideMapping_Comparative
  4.PeptideMapping_ReviewSnapshots
• Evidence-based decision making: Traceability and transparency in data processing, visualization and review
• bring confidence and accuracy in decisions made with high efficiency

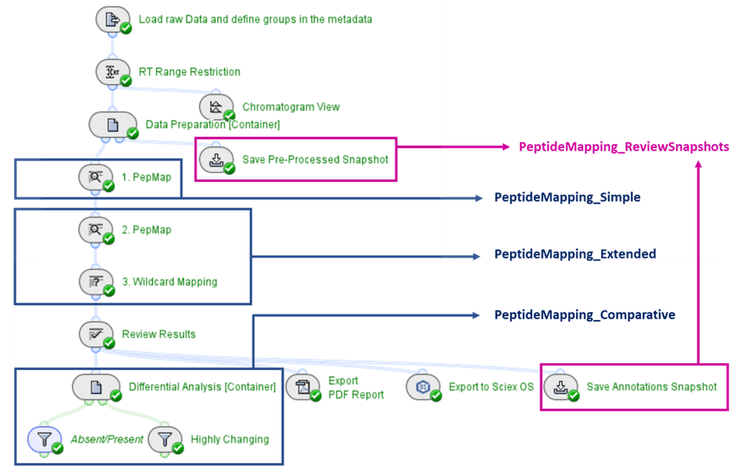

Figure 1. Layout of the PeptideMapping_Comparative workflow in the Biologics Explorer software v.1.0.2. Blue boxes highlight additional activity nodes within each workflow template that advance the in-depth characterization process. The pink boxes highlight activity nodes used to save intermediate data and results at different processing stages.

image-top

Methods

Methods

Sample preparation

Reduced samples:  adalimumab was denatured with 7.2 M guanidine hydrochloride in 100 mM Tris buffer (pH 7.2), followed by reduction and alkylation of cysteine bonds using 10 mM DL-dithiothreitol and 30 mM iodoacetamide, respectively. Protein digestion was performed with trypsin/Lys-C at 37°C for 16 h at pH 7.5. The reaction was stopped with 1% formic acid.⁴

Non-reduced samples:  adalimumab was denatured with 7.2 M guanidine hydrochloride in 50 mM Tris buffer (pH 7.0). Free cysteine residues were capped with 5 mM iodoacetamide. Protein digestion was performed with trypsin/Lys-C at 30°C for 16 h at pH 7. The reaction was stopped with 1% formic acid.⁵

Chromatography:  Detailed method parameters were described previously.^4,5 Briefly, peptides from trypsin/Lys-C digests (5 μL, 2 μg) were separated with a CSH C18 column (2.1×100 mm, 1.7 μm, 130 Å, Waters) using an ExionLC AD system. Mobile phase A consisted of 0.1% formic acid in water, while the organic mobile phase B was 0.1% formic acid in acetonitrile.

Mass spectrometry:  Data was acquired in positive ionization mode with a data dependent acquisition (DDA) method using the SCIEX ZenoTOF 7600 system. The electron energy for the alternative fragmentation in the EAD cell was set to 7 eV. Detailed method parameters were described previously.^4,5

Data processing: Data was processed with the Biologics Explorer software using different pre-built templates as discussed in the next sections.

Overview

Overview of the peptide mapping workflows

The Biologics Explorer software is prepackaged with 3 main and 1 supplemental peptide mapping workflow template with settings optimized for the processing of protein digests analyzed on SCIEX QTOF MS platforms, including the ZenoTOF 7600 system. All workflows share a common fundamental architecture, where activity nodes are arranged in a chronological order to process data sequentially followed by a Review Results  activity node for the interrogation of the compiled results (Figure 1).

The advanced workflow structure established a stepwise approach to data processing with each activity node, maximizing the data quality and confidence for the peptide mapping stage. At first, noise reduction steps are applied to the data followed by detection of MS peaks, grouping of isotopic clusters, then further grouping of charge states and any additional associated adducts. Subsequent stages include MS/MS peak consolidation and detection, plus deisotoping of MS/MS peaks to further maximize confidence and robustness in the following stages where data is matched to amino acid sequences in  in silico  for peptide identification and PTM characterization.

The results of each activity node can be visualized independently, whereas data across the contained tables and figures are automatically connected. In addition, results visualization can be synchronized across different activity nodes enabling efficient review during the data processing and analysis stages.

The 3 main ‘PeptideMapping’ workflows (_Simple, _Extended and _Comparative) are designed with an increasing level of complexity to suit different depths of peptide mapping investigations (Figure 1). All workflows contain an  Export PDF Report  activity node, where different sections of the generated report can be customized to include specifically selected or all input/output details for each activity node. The generated PDF report file can be downloaded and encompasses 2 attachments by default. The first attachment is an excel file of results, which can be tailored as per personal preference for the depth of its contents. The second attachment is a copy of the executed workflow. This .xml file can be effortlessly opened by dragging and dropping it into the workflow preview pane of the software. This is a substantially efficient feature, particularly if workflows are intended to be shared among users, different groups or sites, or revisited at a future timepoint.

All main workflows are also equipped with an  Export to Sciex OS activity node, where a tailored .txt list of product quality attributes (PQA) or critical quality attributes (CQA) can be generated and exported to the Analytics portion of SCIEX OS software for performing further multi-attribute methodology (MAM) analysis.

PeptideMapping_Simple

PeptideMapping_Simple workflow

This workflow is designed to provide a quick and efficient peptide mapping overview, for quality checks or during early process development stages. It is suited for assessment of sequence coverage and characterization of common PTMs, including N-linked glycans, which can be identified using the glycan libraries provided with the Biologics Explorer software.

DDA-based MS/MS methods are common practices in peptide mapping. Depending on the user-defined settings for DDA, multiple MS/MS events can be expected from a single precursor ion. The  MS/MS Consolidation  activity node is set by default to merge multiple MS/MS events to a single spectrum per isotopic cluster (Figure 2). This integration of fragmentation data maximizes the evidence for high confidence peptide identification and reduces both false negatives and false positives events. Within the same activity node, the MS/MS data is further merged  Across Chromatograms, with the option to deselect the merging process depending on the sample set and objective of the analysis (Figure 3). If this merging option is selected, the algorithm will consolidate MS/MS spectra for the same feature across the entire sample set and the resulting consolidated MS/MS will be assigned to the sample with the highest intensity MS/MS spectrum. This capability leverages the information from individual spectra to amplify the evidence of peptide fragmentation and generates an enhanced single spectrum for confident and efficient peptide identification. As such, the time needed for manual data evaluation in the  Review Results activity node can be substantially reduced.

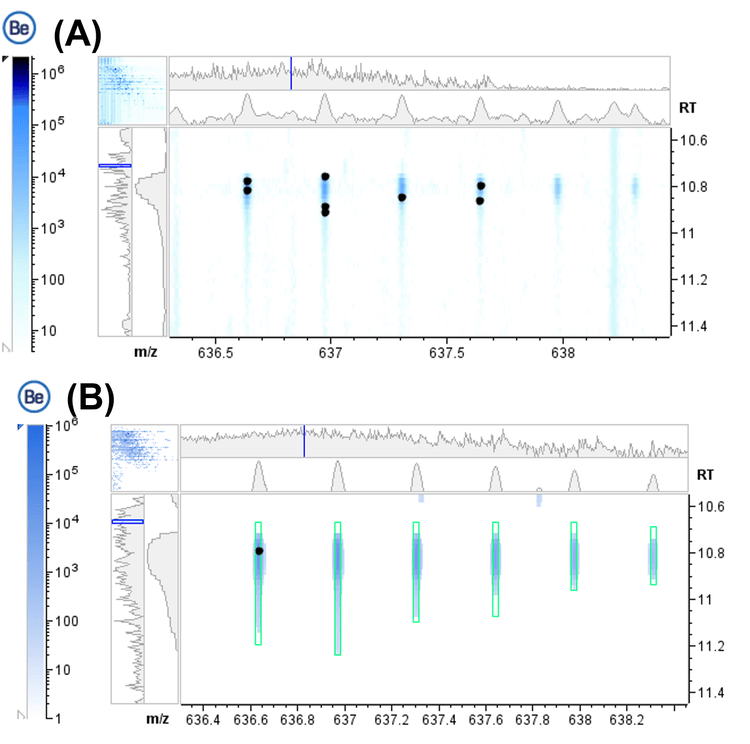

Figure 2. Synchronized and zoomed RT and  m/z  regions of the ion map.   Load Raw Data  (A) and  MS/MS Consolidation (B) activity nodes, demonstrating a peptide cluster with multiple and consolidated MS/MS triggers (black dots), respectively.

image-top

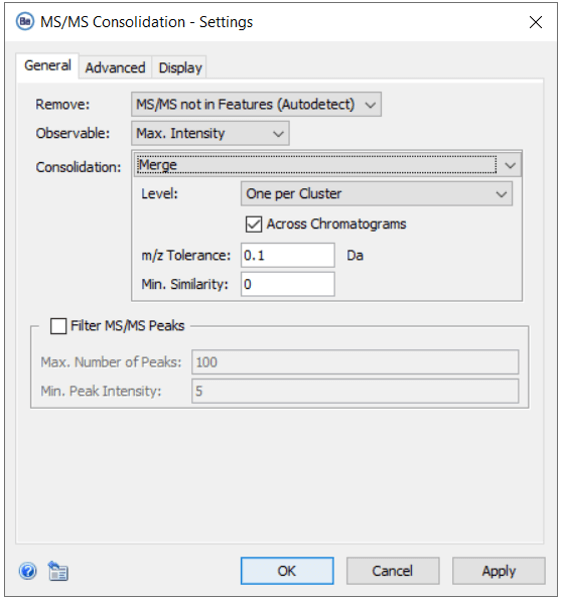

Figure 3.  MS/MS Consolidation  activity node settings.  The settings can be set to provide different levels of data consolidation.

image-top

The Biologics Explorer software is prepackaged with 3 cumulative CHO N-glycan libraries of increasing complexity and diversity to support various applications, where the largest library contains 136 N-glycans. Additionally, over 26,000 N-glycans compiled in the GlycomeDB database can be searched. The contents of all libraries can be viewed and edited from the Library Browser, where customized libraries can also be built. Investigation of adalimumab via the PeptideMapping_Simple workflow template successfully identified the expected glycan modifications at position N301 with relative abundances consistent with those previously reported. The N-glycan Man6 had a low occupancy of 1.3%. To verify the accuracy of this annotation, the 3 glycopeptides bearing Man6 modification at position N301 were selected in the  Modifications Table  in the  Review Results  activity node. The ion map was then further interrogated, with the help of the Cluster Table to confirm that the identified Man6 clusters (resulting from the different charge states and adduct ions) do belong to the same peptide species and are eluting at the same retention time (Figures 4A, B). Moreover, the associated consolidated and deisotoped MS/MS spectra were investigated for the sequence ladder and identified  c- and  z- ions (Figures 4C, D). This highlights the benefit of the soft fragmentation inherent to EAD, as it resulted in peptide fragments bearing the intact glycan, unequivocally validating the position and type of the N-glycan as well as extensive peptide backbone fragmentation verifying the peptide sequence (Figure 4C).

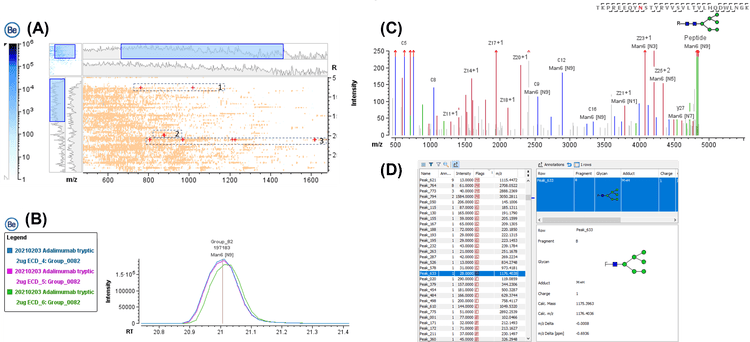

Figure 4. Investigation of Man6 glycan modification at position N301 of adalimumab. (A) Ion map view of all isotopic clusters from 3 identified Man6 glycopeptides (labelled 1,2,3 within black frames). (B) Overlayed precursor XICs of the most abundant glycopeptide with Man6 modification. (C) MS/MS spectrum of the most abundant Man6 modified glycopeptide (5+ charge state) after consolidation and deisotoping Peaks are colored according to their respective ion species (red: fragments derived from the C terminus, blue: fragments derived from the N terminus, green: peptide and mixed peaks, grey: unannotated peaks). (D) Fragment spectra peak table compiling details on all annotated peaks within the consolidated and deisotoped MS/MS spectrum.

image-top

PeptideMapping_Extended

PeptideMapping_Extended workflow

The PeptideMapping_Extended workflow has 2 additional activity nodes, 2. PepMap  and  3. Wildcard Mapping  (Figure 1). It has been optimized for the analysis of more complex proteins and in-depth peptide mapping characterization. As an example, a more comprehensive glycosylation analysis is possible if the  1. PepMap  activity node is used to identify the usually higher-abundance N-linked glycopeptides present in the sample and the  2. PepMap  activity node is used for O-glycan mapping, using either the prepackaged or a customized O-glycan library. By default, the  2. PepMap  activity node ignores the features annotated in the prior node, reducing the computational search space and the rates of false positive matching. Nonspecific digestion, conjugates (either entered as molecular formulae or delta loss/gain value) and less common PTMs can be also specified within  2. PepMap.

Wildcard Mapping  is a powerful tool designed for discovery purposes where unexpected modification, that are not specified in the processing parameters, are detected under very stringent acceptance criteria. If not required, this activity node (as with others) can be skipped by activating the ‘bypass’ icon associated with the activity node itself. In the following sections an example is given. Here, an expected chemical modification was used as an example to demonstrate how  Wildcard Mapping  can be used to identify and confirm unexpected modifications within a biologics-specific processing method.

The analysis of the  Wildcard Mapping  results from the _Extended workflow revealed peptides with an average loss of 18.010±0.005 Da from aspartic acid residues. Using the Modifications Editor tool as a guide to identify possible matches, this PTM could be attributed to the loss of a water molecule arising from nucleophilic attack on the side chain carbonyl carbon of aspartic acid during isomerization, resulting in the formation of succinimide intermediate.⁶ The next stage following the detection of an unexpected modification is collecting MS and MS/MS evidence. To investigate this representative example further, a selected peptide, TPEVTCVVVDVSHEDPEVKFNWYVDGVEVHNAK, exhibiting the detected mass loss from position D25 was compared to its native form (Figure 5A). A mass shift of 3.601 Da between the monoisotopic peaks of the 5+ charge state of the modified and unmodified peptides is consistent with H₂O loss (Figure 6). Additionally, the slightly longer retention time of the modified peptide correlates with the expected increase in hydrophobicity relative to the unmodified D25 peptide (Figure 6).

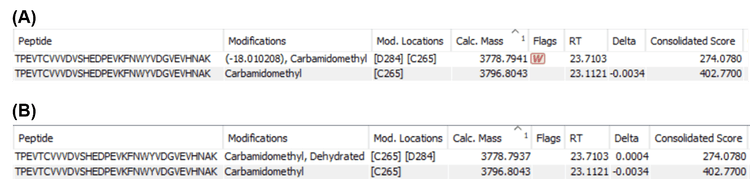

Figure 5. Representative example for identifying unspecified modifications using  Wildcard Mapping  activity node.  (A) Peptide: TPEVTCVVVDVSHEDPEVKFNWYVDGVEVHNAK identified by  Wildcard Mapping  to be modified with a loss of -18.010 Da from aspartic acid residue. (B) TPEVTCVVVDVSHEDPEVKFNWYVDGVEVHNAK, with a confirmed dehydration modification from aspartic acid residue following the addition of the modification in  2.   Pepmap

image-top

Figure 6. Visualization of the 5+ charge state of the modified peptide TPEVTCVVVDVSHEDPEVKFNWYVDGVEVHNAK.  Ion map view (top) and 3D view (bottom) of the peptide identified through  Wildcard Mapping provide further information. Measuring the distance between the modified and unmodified forms in the ion map (red and white bars) can be used to confirm the observed modification, while the 3D plot can detect interferences not visible from the 2D view.

image-top

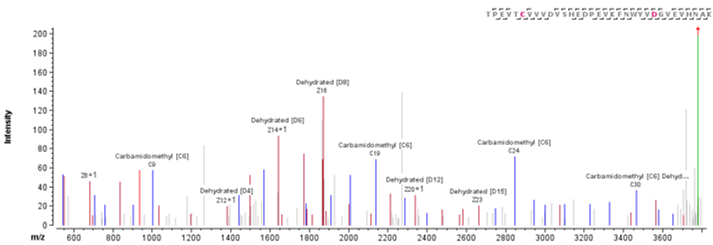

Investigation of the 3D plot of the 5+ charge state of the modified peptide further highlights its chromatographic resolution from other closely eluting peaks (Figure 6). Finally, the modification was confirmed on the MS/MS level, using the consolidated and deisotoped MS/MS spectrum of the 5+ charge state of the modified peptide to reveal a c- and z- ion ladder consistent with 18.010 Da loss from D25, thus providing unequivocal confirmation on the location and type of the modification (Figure 7). With this sufficient evidence generated for the existence of a dehydration event from aspartic acid residue, the  2. Pepmap activity node was reset and that modification was entered as an additional variable modification into the search parameters. The result (Figure 5B) shows that the modified peptide was identified with a high consolidated score and a low mass error (0.0004 ppm). Using the same logic, modifications that are unexpected for a specific sample set can be identified and confirmed on MS and MS/MS levels resulting in deeper characterization of the investigated molecule and better optimization of the biologics specific workflow for future routine analysis.

image-top

PeptideMapping_Comparative

PeptideMapping_Comparative workflow

The _Comparative workflow is further empowered with dedicated statistics activity nodes for differential analysis (Figure 1). Samples exposed to different stress conditions or sample preparation steps, those acquired during instrument optimization or process development, different lots or manufacturers and how they can efficiently be analyzed using the _Comparative workflow.

Sample groups can be specified within the metadata editor either in  Load Raw Data  or in  Data Setup  activity node. The  Highly Changing  activity node allows monitoring of the fold change in peptide abundance between samples, where a minimum threshold for fold change can be set depending on the nature of the samples. The  Absent/Present activity node on the other hand can be used to investigate new peaks detected in at least 1 sample group (Figure 1). The output results from each activity node are compiled in interactive tables that provide comprehensive details on each identified peak. Furthermore, the data can be synchronized with any of the previous activity node(s) to facilitate traceability. To demonstrate this feature, reduced and non-reduced adalimumab samples were run in the _Comparative workflow template. Peptides with cysteine carbamidomethylation in the former group and peptides with intact disulfide bridges in the latter group were observed, as expected for these samples (Figure 8).

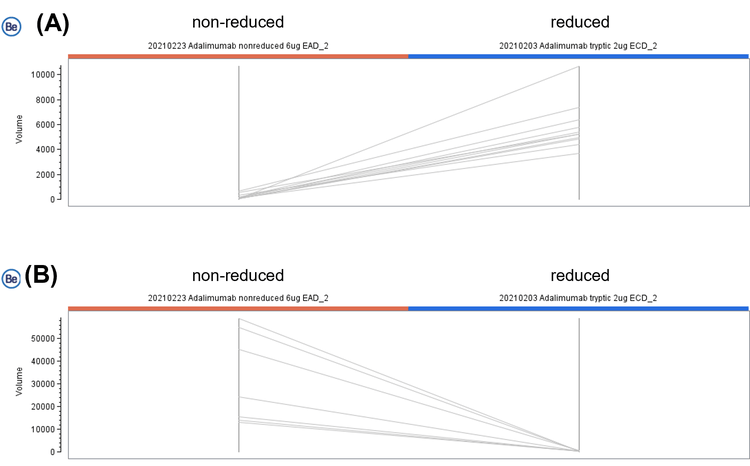

Figure 8. Example plot from the  Highly changing  activity node.  The results are demonstrating a profile plot of representative peptides that are at least 10-fold different in abundance between reduced and non-reduced adalimumab samples, due to different sample preparations. Carbamidomethylated peptides are highly abundant in reduced samples but not present in the non-reduced samples (A), while peptides with intact disulfide bonds are present in the non-reduced samples and not in the reduced samples (B).

image-top

PeptideMapping_Review

PeptideMapping_Review Snapshots workflow

Finally, this workflow (Figure 9) is designed to open 2 types of snapshots files (.sbf) that correspond to either intermediate (such as, partially processed) data or reviewed (for example, annotation) results generated from the main peptide mapping workflows (Figure 1). To quickly view fully processed and reviewed results, the annotated snapshots can be opened in the racetrack Review Results from Same Batch  (Figure 9). On the other hand, partially processed snapshots can be opened in the racetrack  Review Results from Different Batches (Figure 9). As such, the same processing parameters and peptide mapping settings can be applied to all samples concurrently. In general, snapshots enable faster analysis times since the contained data is either partially or completely processed prior to being saved as .sbf files. Snapshots also provide a useful means of storing data with a lower memory footprint for further inspection later.

Figure 9. Layout of the PeptideMapping_ReviewSnapshots workflow in the Biologics Explorer software v.1.0.2. Two racetracks are included to either inspect previously analyzed and annotated results (left track), or to combine pre-processed data for a differential analysis across different batches (right track).

image-top

Conclusion

Conclusion

• Workflows with optimize settings maximize the efficiency by which high-quality peptide mapping evidence can be extracted from rich LC-MS/MS data (EAD or CID fragmentation)
• Diverse workflow structures allow for the flexibility to fit various needs while developing or manufacturing biotherapeutics
• Various options available for saving, sharing, reporting and exporting results provide a robust platform for routine high- throughput analysis meeting diverse needs along the pipeline of biologics development
