Using the sensitivity enhancements of the Zeno trap, Zeno MRM^HR is used to quantify low levels of pesticides in oilve oil and various fruits and vegetables to meet global regulations for pesticide residues. Over the mass range analyzed, the Zeno trap allowed for signal gains of 5-15x, with negligible increase in noise due to the selectivity of MRM^HR analysis, hence gains were directly related to improved LLOQs. The selectivity and specificity afforeded by the accurate mass MS/MS quantitation on the ZenoTOF 7600 system allowed for highly confident identifications of pesiticdes in real food samples (MS and MS/MS mass accuracy, library matching, isotope ratio matching), while still maintaining triple quad-like ability to perfom ion ratios for confirmations.

image-top

Introduction

Introduction

In order to ensure safety in the global food supply, testing for adherence to federal and international requirements is necessary. The tests monitor for chemical residues, including pesticides, microbial and fungal toxins, and microbiological hazards. Considering the ever-growing demand on the food supply, farmers and producers are tasked with optimizing yields, which means employing the use of pesticides to deter pests from harming their crops. For this reason, it is important to be aware of adherence to pesticide maximum residue limits set by the appropriate governing bodies.

Traditionally, pesticide residue analysis has been performed by triple quadrupole mass spectrometers, due to their sensitivity and quantitative power. Accurate mass instruments can afford additional levels of confirmation, however they have traditionally suffered from a lack of sensitivity and precision, especially when performing MS/MS experiments to meet the testing requirements for the regulatory guidelines. The technological enhancements afforded by the ZenoTOF 7600 system, however, bring QTOF systems into a new era of sensitivity and precision.

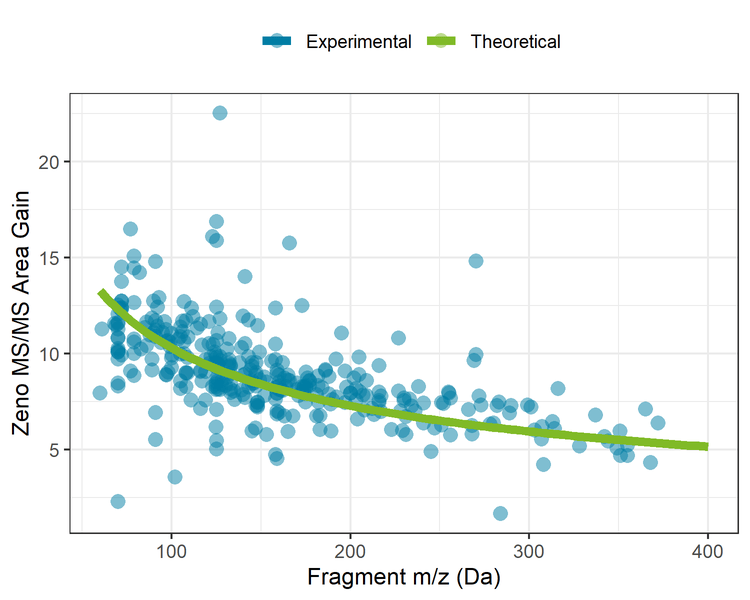

Figure 1. MS/MS peak area gains as a result of enabling the Zeno trap on the ZenoTOF 7600 system.  Sensitivity improvements during MS/MS experiments using the Zeno trap are a result of regaining >90% of duty cycle related losses. For this reason, the improvements are dependent on the upper limit of scan range and the measured mass of the MS/MS fragment. The theoretical gain curve is constructed based the scan parameters acquired in this experiment.

image-left

Key feature of Zeno MRM^HR for pesticide quantification

• Highly sensitive pesticide detection with a high degree of selectivity and identification confidence using Zeno MRM^HR
• In-matrix LLOQs below 0.010 mg/kg to meet global pesticide regulations
• Quantification using accurate mass fragment extracted ion chromatograms cuts through noise and interferences, simplifying peak detection and integration to eliminate manual peak review
• Identification confidence using accurate mass precursor and fragments (< 5 ppm mass error or < 1mDa below 200 Da), ion ratios (± 30%) and MS/MS spectral library matching
• High speed analysis ensuring ample points across each chromatographic peak, even with highly-multiplexed analyses
• Easy data filtering and data review with SCIEX OS software.

Methods

Methods

Sample preparation: All samples were extracted according to the standard QuEChERS citrate protocol using a Phenomenex roQ QuEChERS EN Method kit. Briefly, 10 g of homogenized food product and 10 mL of LC-MS grade acetonitrile were combined in a 50 mL centrifuge tube and shaken for one minute. To separate aqueous and acetonitrile layers, 4 g MgSO₄, 1 g NaCl, 1 g trisodium citrate dihydrate and 0.5 g disodium hydrogencitrate sesquihydrate was added. The sample was shaken for an additional 1 minute and centrifuged for 5 min at 4000 rpm. A 5 mL aliquot of the acetonitrile layer was combined with 750 mg MgSO₄ and 125 mg PSA in a 15 mL centrifuge tube for clean-up. The extract was shaken for 30 seconds and centrifuged for 5 min at 4000 rpm. A 200 µL aliquot of cleaned‑up extract was added to an LC vial diluted with 800 µL of mobile phase A for sample analysis for an overall 5x dilution factor.

Chromatography: Analytes were separated on a polar-embedded reverse phase C8 column (2.1 x 150 mm, 1.8 µm) using a SCIEX ExionLC AD system. Separation was performed at a flow rate of 300 µL/min with a column temperature of 35ºC and an autosampler sample storage temperature of 5ºC. Mobile phase solvents were (A) 98:2 water/methanol and (B) 2:98 water/methanol, both with 0.1% formic acid and 5 mM ammonium formate. The gradient program can be seen in Table 1. Total runtime was 17 minutes.

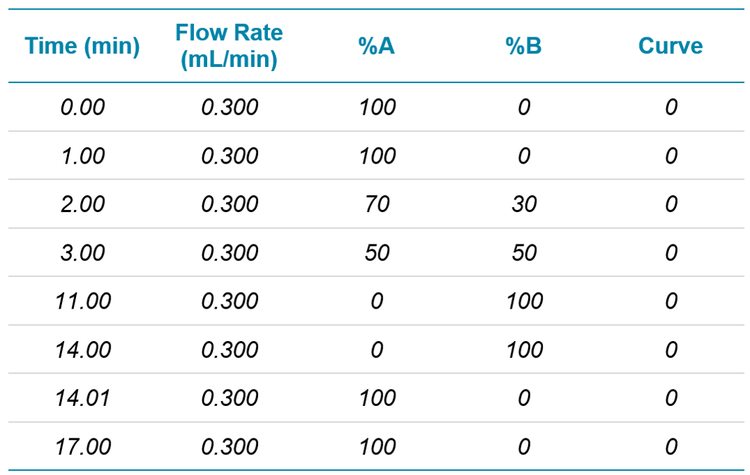

Table 1. LC gradient conditions.

image-right

Mass spectrometry:  All compounds were analyzed using a SCIEX ZenoTOF 7600 system with scheduled Zeno MRM^HR for optimal sensitivity. Source conditions can be observed in Table 2. Accurate mass precursor ions were scanned from 100-950 Da with an accumulation time of 100 ms, a declustering potential (DP) of 80 V and a collision energy (CE) of 10 V. Zeno MRM^HR acquisition was retention time scheduled with a tolerance of ± 20 seconds. MS/MS data were acquired with DP = 80 V and compound optimized CE. Accumulation times for each compound were varied (minimum 10 ms) to maintain a total cycle time of 600 ms across the acquisition. Each MS/MS was acquired down to 50 Da to ensure all fragments were captured for identification.

Data processing: All data were processed with SCIEX OS software 2.0.1 using the Analytics module and MQ4 integration algorithm. The monoisotopic mass and two accurate mass fragments were extracted for each analyte with a 20 mDa window, with 1-point gaussian smoothing applied.  Retention time thresholds for peak identification were set to ± 15 s. Quantitative and qualitative thresholds were set according to SANTE/12682/2019. Briefly, positive identifications were determined such that two fully overlapping extracted ion chromatograms had mass error < 5 ppm (< 1 mDa for masses below 200 Da) and S/N > 3 (or 5 points of consecutive signal in the absence of noise). Additionally, ion ratio thresholds were set according to the nominal mass requirement of ± 30% relative deviation from standards. Quantitatively, LOQs were set at the lowest standard giving average accuracy and precision within ± 20% across the n=6 replicates. Along with the SANTE guidelines, flagging rules were set for library match and theoretical isotope ratio match for easy filtering in SCIEX OS software using the conditions in

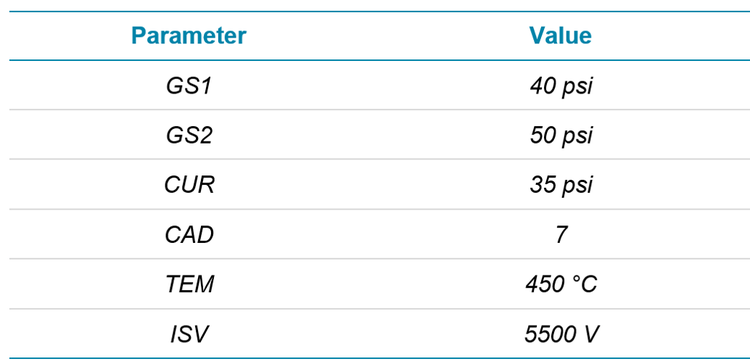

Table 2. MS source conditions.

image-right

Figure 2. Settings for applied Qualitative Rules.  (Top) Built-in flagging rules for mass error, retention time, isotope ratio and library score applied for easy filtering during data analysis. (Bottom) Ion ratio threshold settings. Expected ion ratios are automatically calculated from standards in data set.

image-top

Sensitivity

Sensitivity enhancement with Zeno MS/MS

The use of the Zeno trap on the ZenoTOF 7600 system allows for >90% of duty cycle related losses to be recovered during MS/MS experiments across the entire mass range. With traditional orthogonal injection QTOF mass spectrometers, ion losses occur as a result of mating a continuous ion beam coming from the quadrupole ion guides with the pulsed nature of the TOF accelerator. To overcome this on the ZenoTOF 7600 system, a Zeno trap was added at the end of the Q2 collision cell assembly, where an ordered release of ions based on their potential energy allows for all ions to arrive at the TOF accelerator at the same time and location. For this reason, the sensitivity enhancements are both dependent on the upper limit of the MS/MS scan range and the mass of the fragment ion. Figure 1 shows the experimental gains experienced during this analysis overlaid with the theoretical gains based on the fragment masses and scan parameters used in this experiment. Here we can see that enabling the Zeno trap yields a minimum of 5x intensity gain, with gains up to 13x as fragment masses decrease.

With Zeno MS/MS, it is frequently the case that extracted ion chromatograms (XICs) show greater intensity compared to XICs from the precursor ion traces, as observed in Figure 3. This is a result of comparing an MS/MS spectrum with >90% duty cycle to an MS spectrum with a typical duty cycle of 5-25%. Improvements can also be observed in MS/MS spectral quality for greater confidence during library confirmation. Since duty cycle improvements are only a function of scan range and fragment mass, these gains are observed across all molecule types, independent of chemistry and ionization efficiency. Further, since the selectivity afforded by accurate mass MS/MS analysis often results in little to no chemical noise, the gains in signal-to-noise approach the gains observed in raw signal (Figure 4).

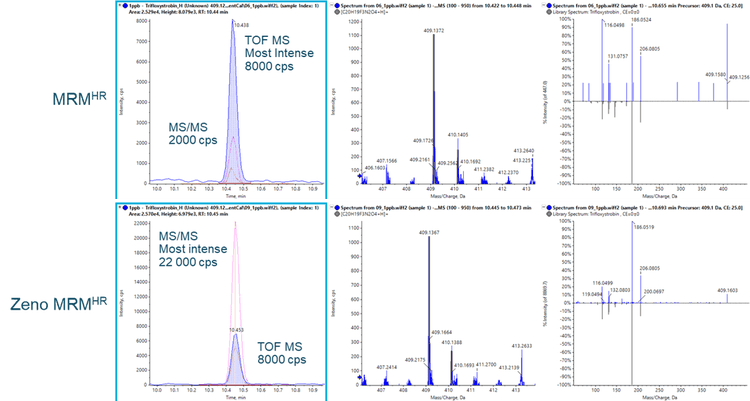

Figure 3: Example comparison between (top) normal MRM^HR acquisition and (bottom) Zeno MRM^HR acquisition for trifloyxystrobin at 1 ng/mL. Between the two acquisitions, the TOF MS information remains constant: the TOF MS XICs (left, filled blue traces) have the same intensity, and the MS spectrum (middle) remains the same. However, the MS/MS XIC (left, pink trace) gains approximately 11x intensity and the MS/MS spectral quality (right) improves significantly.

image-top

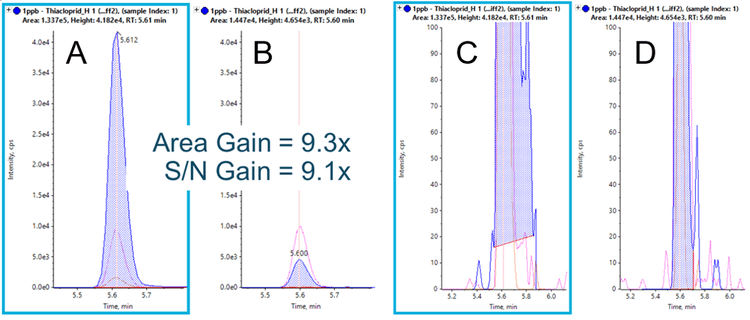

Figure 4. Example MS/MS sensitivity gains with Zeno MS/MS. A 9.3x area gain can be observed for thiacloprid between MS/MS acquired with (A) and without (B) the Zeno trap enabled, with negligible change to the noise regions (C, D, respectively). This results in a 9.1x gain in S/N.

image-top

LLOQ

LLOQ assessment in olive oil

To assess the in-matrix quantitative performance of the ZenoTOF 7600 system, n=6 replicates of a matrix matched curve was constructed in QuEChERS extracted olive oil ranging from 0.10 µg/kg to 0.10 mg/kg. Incorporating the 5x dilution during sample preparation, in-vial concentrations ranged from 0.02 to 20 ng/mL. The curve was assessed for linearity, accuracy and precision, mass accuracy and ion ratios according to SANTE/12862/2019 guidelines. Figure 5 shows the distribution of in-matrix LLOQs determined for the quantified pesticides. It can be observed that nearly all quantified pesticides have an LLOQ below 0.001 mg/kg, with the majority with LLOQs falling between 0.0002 and 0.0005 mg/kg. Also, all quantified pesticides showed LLOQs at or below 0.005 mg/kg, meaning that the ZenoTOF 7600 system has enough sensitivity to meet nearly any global pesticide residue regulation, as most maximum residue limits are set as low as 0.010 mg/kg. Additionally, the use of accurate mass fragment ions for quantification cuts through nearly all noise and interferences, simplifying peak detection and integration to eliminate the need for manual peak review.

At the calculated LLOQs, the quality of qualitative information acquired remains consistent. Figure 6 highlights three example pesticides at their respective LLOQs. In each case, the fragment XICs (left, filled blue traces) show ample S/N for detection and improved S/N over the precursor XICs (pink traces). The ion ratio thresholds, adopted from the SANTE nominal mass requirement of ± 30%, are maintained at these low concentrations. With the additional sensitivity, mass error on fragments can also be maintained due to the improved ion statistics during detection, as well as the generation of clear and unambiguous MS/MS spectra for library confirmations, even in dirty matrices.

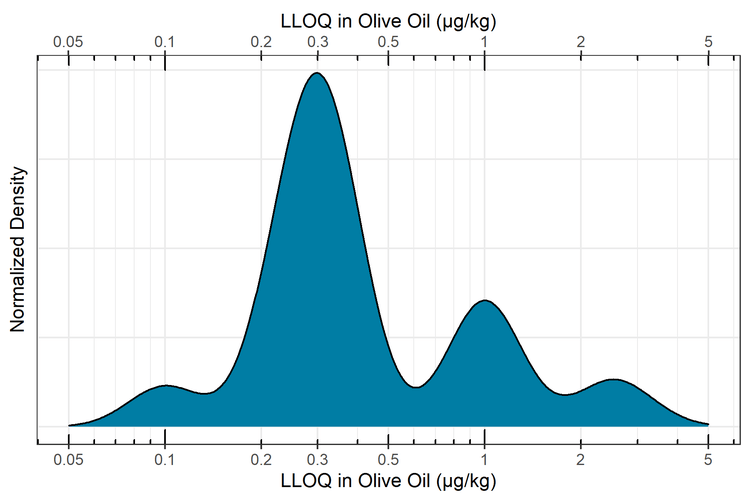

Figure 5. In-matrix LLOQ distribution for the ZenoTOF 7600 system.  Calculated from n=6 replicate injections of the olive oil matrix-matched curve using quantifier ion and processed according to SANTE/12862/219 guidelines. >90% of analytes meet two ion criteria below 10 ppb.

image-right

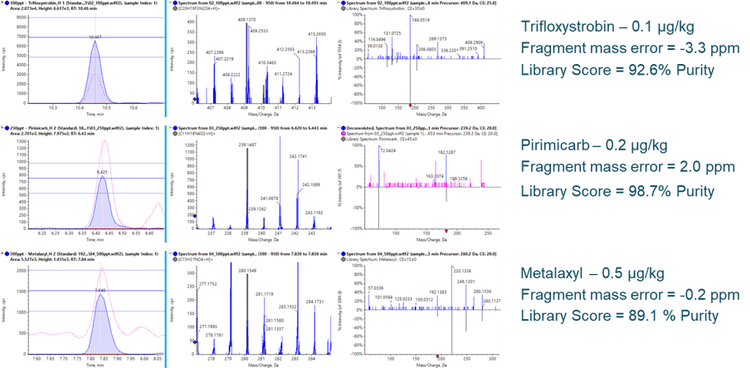

Figure 6: Zeno MRM^HR acquisition for three pesticides.  The TOF MS data XICs (left, pink trace), the MRM ^HR  XIC (left, blue filled trace), the TOF MS spectrum (middle) and the MS/MS spectrum (right) is shown for three of the detected pesticides.  Library matches are also shown for trifloxystrobin (top), Pirimicarb (middle) and Metalaxyl (bottom).

image-top

Comparison

Comparison of organic and non-organic produce using Zeno MRM^HR

The developed quantitative method was also applied to a variety of fruits and vegetables in order to compare the relative pesticide burden between produce that was traditionally farmed and produce purchased from an organic grocer. The twelve fruits and vegetables chosen were from the Environmental Working Group’s “Dirty Dozen” list, an annual list of produce on which pesticides are most frequently detected.

Comparing the sum total of pesticides detected for each specific food, traditionally farmed produce showed a larger total pesticide burden, with the exception of celery, grapes and potatoes. For these exceptions, the organic produce showed a larger total pesticide concentration (Figure 7). For the non-organic produce, pears, peaches and nectarines showed the largest total concentration, whereas potatoes showed the largest sum concentration for the organic produce and for produce overall. Sum total concentrations ranged from less than 0.001 mg/kg to greater than 7 mg/kg. Comparing the aggregate concentration distribution for each pesticide hit between all organic and non-organic produce, the organic produce showed a slightly lower average concentration, as seen in Figure 8.

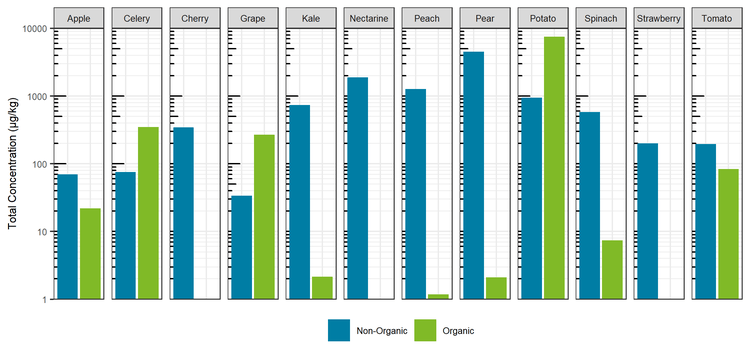

Figure 7: Comparison of sum total concentration of pesticides detected in non-organic and organic produce.

image-top

Figure 8. Aggregate concentration distribution of pesticides quantified in (blue) non-organic and (green) organic produce.

image-left

Looking at the individual pesticide hits in Figure 9, a few key observations can be made. First, the most contaminated food, organic potatoes, was a result of a single hit: chlorpropham, a germination inhibitor commonly applied to potato crops. Second, when the same pesticide was detected in both organic and non-organic produce, the concentration was higher in the organic produce, with the exception of pyrimethanil in pears. Third, although concentrations were detected as high as mg/kg levels, each hit was below the maximum residue levels set by Health Canada, as all produce was purchased in Canada. Overall, the differences between the organic and non-organic produce were not as delineated as most advertisements and product packaging for organic products claim. The levels detected are far below any concentration that may trigger acute or chronic health effects.

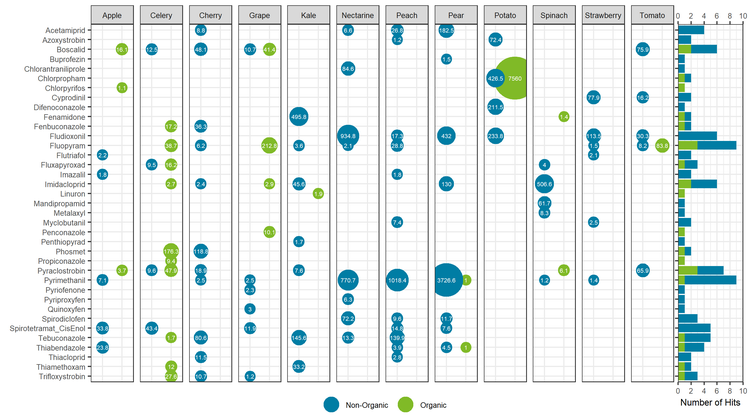

Figure 9: Individual pesticide hits in each food commodity. Inset numbers represent individual pesticide concentrations in µg/kg. Generally, non-organic produce contained a greater number of pesticide hits than organic produce, but organic produce still contained pesticide residues. All pesticide hits were quantified below Health Canada maximum residue limits for their respective commodity. The right panel shows the number of times each pesticide was detected, where pyrimethanil, fluopyram, pyraclostrobin and fludioxonil were detected most 9.

image-top

Conclusions

Conclusions

• Highly sensitive, quantitative analysis using the ZenoTOF 7600 system, with ample sensitivity to meet global pesticide regulations
• Mass accuracy, library matching and ion ratios used for confirmation
• Quantification using accurate mass fragment ions reduces chemical noise and chromatographic interferences, ensuring accurate and precise peak integration, and minimizing manual peak review.

References

References

Qualitative flexibility combined with quantitative power - Using the ZenoTOF 7600 system, powered by SCIEX OS software. SCIEX technical note RUO-MKT-02-13053-B.
