TripleTOF® 5600+ 시스템

단일 플랫폼에서 고성능 정성 분석 및 정량 분석을 수행하기 위한 QTOF 표준 설정

SCIEX Triple Quad 기술의 동급 최고 프런트 엔드와 Accelerator TOF 분석기가 결합된 TripleTOF 5600+ 시스템은 단일 플랫폼에서 명목 질량과 Accurate Mass의 이점을 제공합니다.

이 입증된 시스템은은 포괄적인 정성 탐색, 고속 프로파일링 및 고분해능 정량 워크플로우를 독자적인 방법으로 통합하여 의약품 개발, 오믹스 연구 및 까다로운 미지의 화합물 분석을 위한 고성능과 다기능성을 제공합니다.

모든 시료에서 더 많은 정보 찾기

  • 완전하고 편향되지 않은 SWATH® Acquisition으로 포괄적인 적용 범위에 대한 확신
  • 50시간 이상의 연속 LC-MS 운용 중에 안정적인 질량 정확도를 유지하여 안정적인 최대 운영 시간 제공
  • 고감도, 고분해능 시스템 - 정량 분석 하한(LOQ)이 고성능 Triple Quadrupole과 동등
  • 21 CFR Part 11 규정 준수를 지원하는 규제 환경에 적합
 TripleTOF 5600+ System
핵심 기능

Differential Ion Mobility로 선택성 강화

SelexION® Differential Ion Mobility 기술로 분리 차원을 추가하여 모든 시료에서 더 많은 정보를 수집할 수 있습니다.

DuoSpray™ Turbo V™ Source로 분사 성능 강화

내구성, 안정성 및 가동 시간을 극대화하기 위해 오염을 제한하면서 효율적으로 이온 생성.

데이터 독립형 SWATH® Acquisition을 통한 포괄적인 적용 범위

가변형 윈도우 기능을 통해 사용자가 제어한 폭에서 다수의 Q1 분리 윈도우를 사용할 수 있으므로(사이클당 최대 200), 복잡한 시료에서도 우수한 특이성을 얻을 수 있습니다.

프런트 엔드 분리로 유연성 극대화

고유량, 마이크로플로우와 나노플로우, 모세관 전기영동 분사 이온화(CESI)를 포함한 고급 프런트 엔드 분리 전략과 호환됩니다.

고분해능 Accurate Mass 시스템

시료를 더욱 심층적으로 분석

최적화된 이온 생성, 초점 조정, 반사 및 검출 기능을 갖춘 TripleTOF 5600+ 시스템을 통해 복잡한 시료를 더 심층적으로 분석할 수 있습니다.

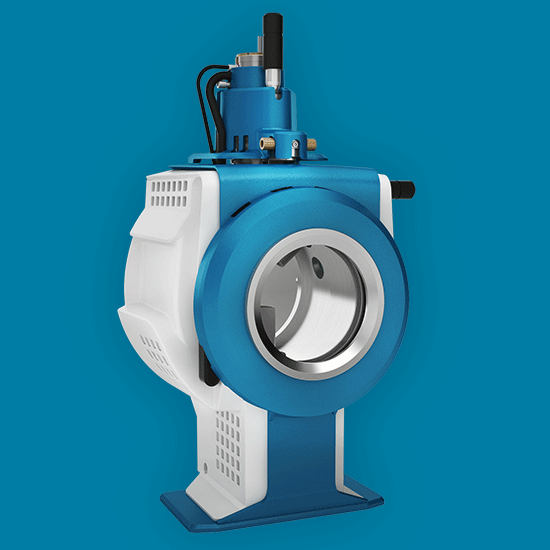

IonDrive Turbo V Source

전설적인 Turbo V 소스의 새로운 설계로, 강화된 기체 유량 동적 특성과 최적화된 히터 구성을 통해 이온 생성이 증가하여 고속 유량에서 안정성, 재현성 및 내구성이 향상됩니다.

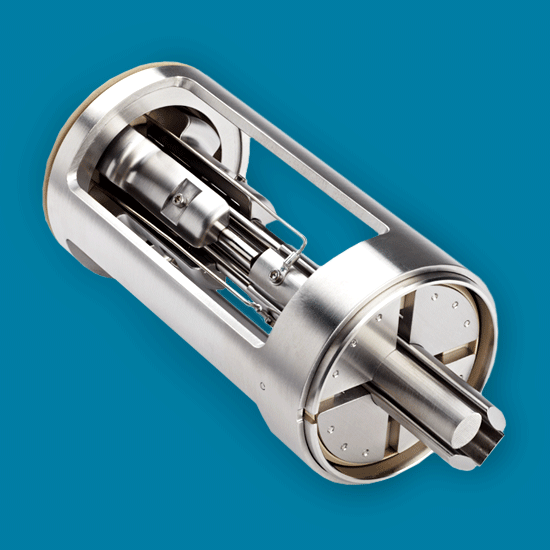

QJet® Ion Guide

QJet Ion 가이드의 내구성이 우수한 설계로, 포획 반경이 넓어져 이온이 소스에서 사중극자 광학 장치로 효율적으로 전달됩니다.

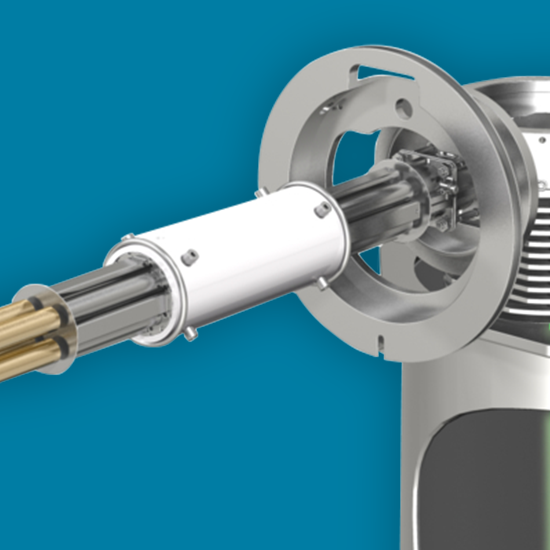

고주파 LINAC® 충돌 셀

구동 고주파 충돌 셀은 이온이 TOF에 유입되기 전에 이온을 포커싱하여 보다 우수한 이온 전달, 높은 듀티 사이클 및 향상된 분해능을 제공합니다.

Accelerator TOF™ Analyzer

TOF(Time-Of-Flight) 분석기는 2단계 미러와 15 kV 가속을 사용하여 분해능과 효율성을 향상시킵니다. 정량 분석과 같은 Triple Quadrupole에 필요한 속도와 감도뿐만 아니라 정성 분석 응용 분야를 위한 고분해능과 질량 정확도를 얻을 수 있습니다.

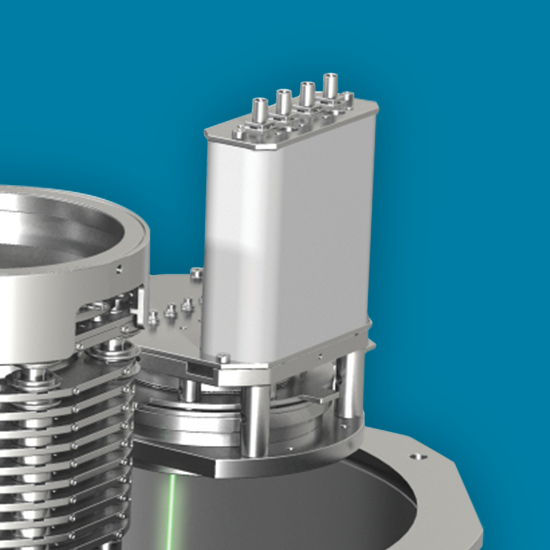

검출 시스템

TDC 프로세싱 기술을 활용한 4채널 MCP 검출기는 고이온 전류에서 내구성과 수명을 향상시키는 동시에 105 이상의 선형 다이내믹 레인지를 제공합니다.

핵심 기능
질량 범위 TOF40 kDa
질량 선택 범위 Q15 – 1250 m/z
TOF-MS 질량 분해능 및 수집 속도956 m/z에서 35,000 이상(FWHM), 10 ms 축적 시간 사용
TOF-MS/MS 질량 분해능 및 수집 속도195 m/z에서 25,000 이상(FWHM), 86 m/z에서 18,000 이상(FWHM), 10 ms 축적 시간 사용
검출기 유형다이내믹 레인지 확대를 위해 TDC 신호를 처리하는 4채널 MCP 검출기
유연한 데이터 수집 워크플로우TOF-MS
Information dependent acquisition (IDA) MS/MS
고정 또는 가변형 Q1 분리 윈도우가 있는 데이터 독립형 SWATH® Acquisition
표적 MRMHR 워크플로우
이온화 소스IonDrive™ Turbo V, DuoSpray™ 소스(각각 TurboIonSpray® 또는 대기압 화학 이온화(APCI) 프로브 사용 가능), NanoSpray® III 소스, Digital PicoView NanoSource
직교성 프런트 엔드 분리 호환고유량 마이크로플로우 및 나노플로우 크로마토그래피, 모세관 전기영동 분사 이온화(CESI)를 포함하거나 SelexION® Differential Ion Mobility를 사용하는 고급 프런트 엔드 분리 전략과 호환됩니다.
가변형 윈도우 SWATH® Acquisition가변형 윈도우 기능이 있는 데이터 독립형 SWATH® Acquisition을 사용하면 사용자가 제어한 폭에서 다수의 Q1 분리 윈도우를 사용할 수 있어(사이클당 최대 200) 복잡한 시료에서도 우수한 특이성을 얻을 수 있습니다. 자세히 읽기
데이터 파일 범용성데이터 품질, 완성도 또는 보안 손실 문제 없이 동료들과 데이터를 공유할 수 있도록 데이터 파일 크기를 압축하여 데이터 저장과 휴대가 간소화

SCIEX만의 TripleTOF 시스템 기술 알아보기
