How to perform System Check on Sciex Exion 1.0 systems from Analyst®


Date: 08/17/2023
Categories: Biologics

0 Votes
   Print    Rate Article:

For research use only. Not for use in diagnostic procedures.


Answer

How to perform System Check on Sciex Exion 1.0 systems from Analyst®

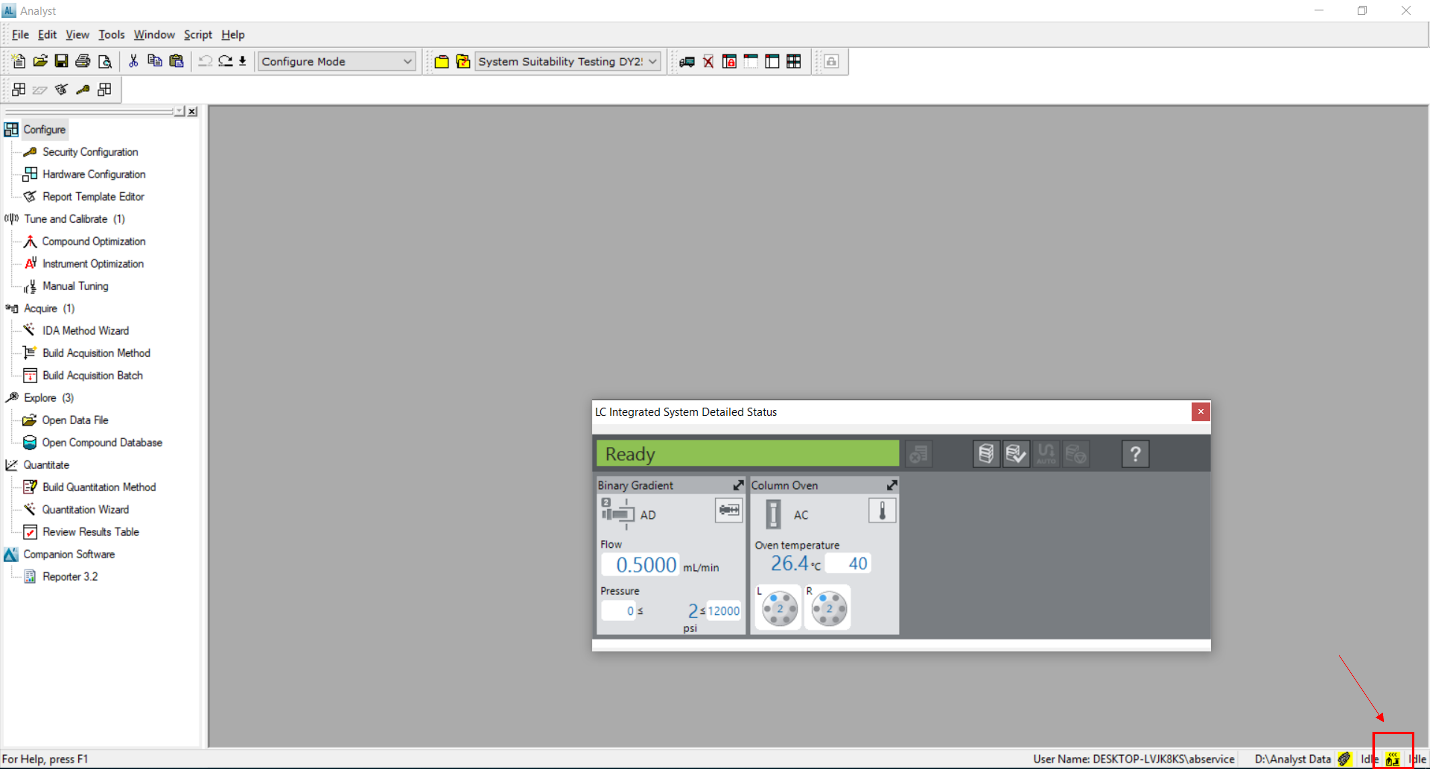

  1. Double click the LC status icon on the bottom right corner on Analyst®
A screenshot of a computer  Description automatically generated

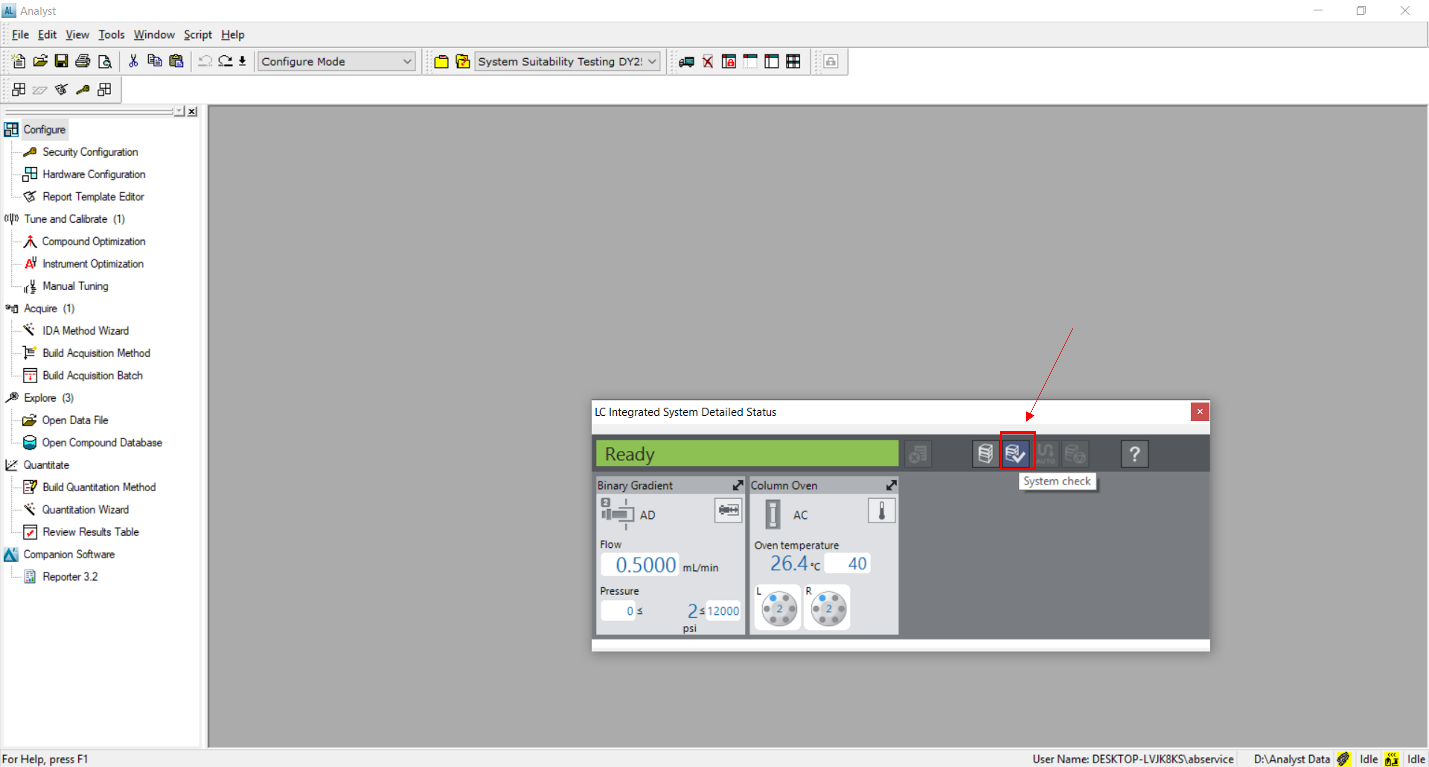

2. Select the system check icon from the LC Integrated System detailed Status
A screenshot of a computer  Description automatically generated

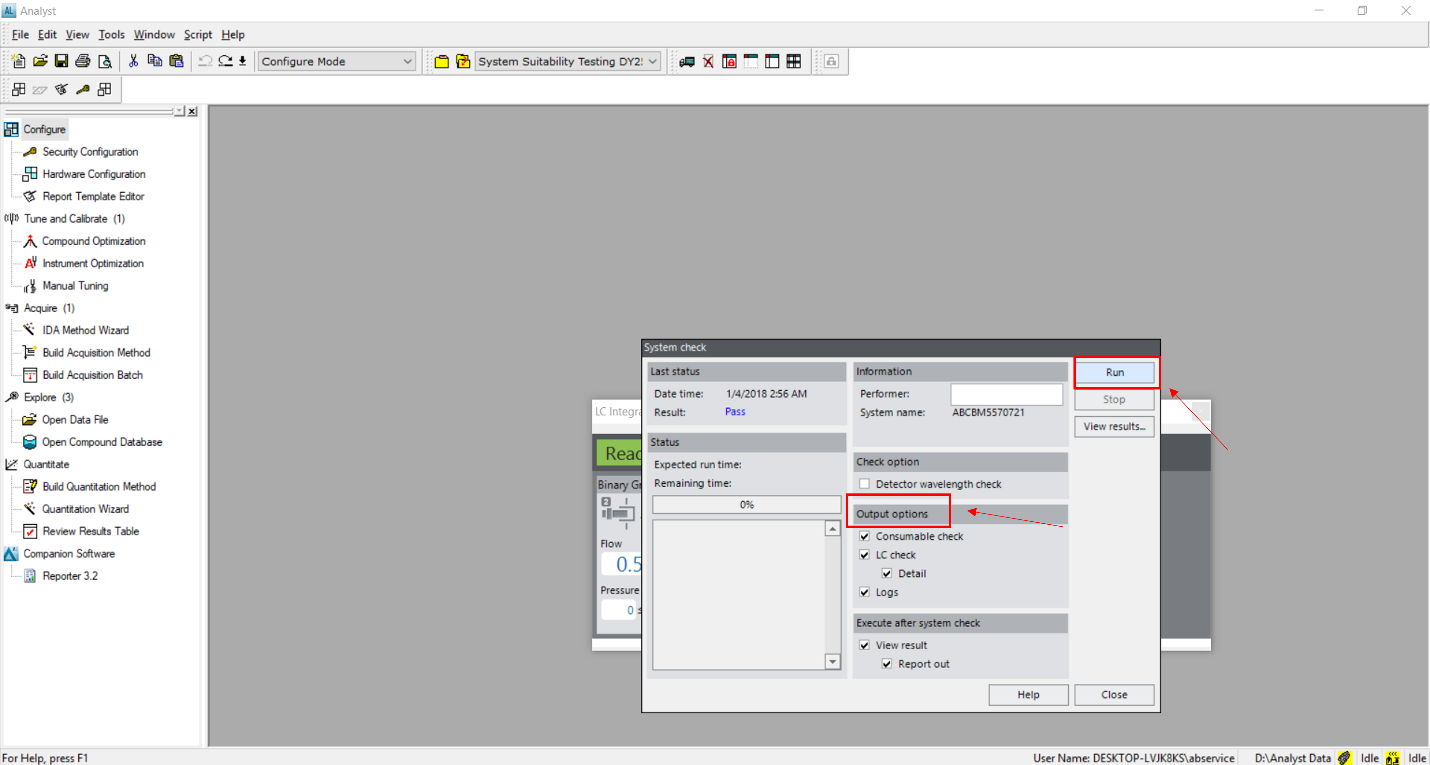

3. Select the appropriate output options and click Run
A screenshot of a computer  Description automatically generated

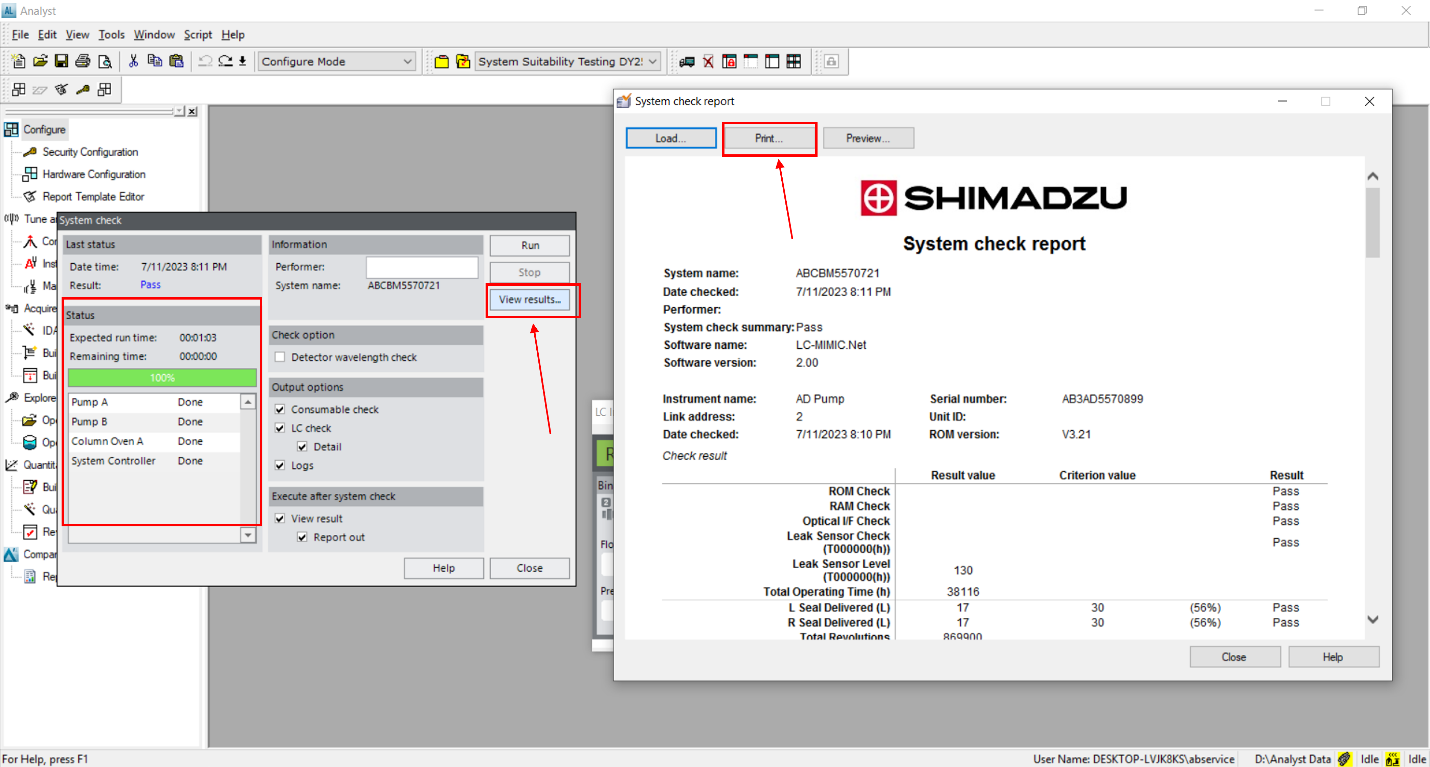

4. Once the system check status reaches 100% click View results and then Print and save as pdf the report.

A screenshot of a computer  Description automatically generated
