Triple Quad 6500+ System

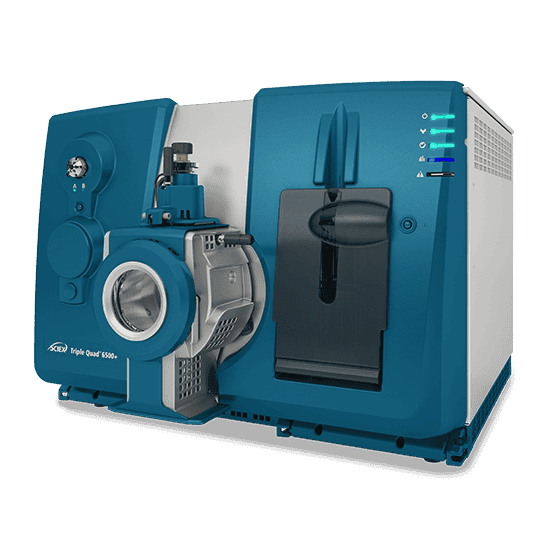

SCIEX Triple Quad™ 6500+ LC-MS/MS System

Revolutionary Sensitivity, Speed, and Performance with IonDrive™ Technology

The Triple Quad 6500+ LC-MS/MS system features multi-component IonDrive Technology including the IonDrive High Energy Detector+ that pushes the boundaries of LC-MS/MS quantitation farther than ever before. The revolutionary sensitivity, speed, and performance delivered through these technology enhancements enable you to see it all, from low mass to high mass compounds, in positive or negative polarity – in a single injection, with high sensitivity, reliability, and confidence.

  • Superior signal-to-noise and LOQ for the widest scope of chemical compounds in the most challenging matrices
  • Up to 6 orders of linear dynamic range for enhanced breadth of applications
  • Increased throughput with polarity switching speeds of 5 msec
  • No compromise in mass range with a 2000 m/z upper mass limit
  • Scan speeds of up to 12,000 Da/second for optimized UHPLC strategies
  • Compatible with SelexION®+ differential ion mobility
  • Enhanced ion transmission for added selectivity without compromising LOQs

The Triple Quad 6500+ system delivers revolutionary sensitivity, speed, and performance for your most challenging methods.

Status: Available

More Ions with IonDrive Technology

Key Features

Mass Range 5-2000 Da
Features IonDrive QJet, HED Detector
Detector Type IonDrive High Energy Detector+
Scan Types Q1 MS, Q3 MS, Product Ion, Precursor Ion, Neutral Loss or Gain, MRM, EMS, EPI, ER, MS3, MRM3
Ionization Sources/Options IonDrive Turbo V; OptiFlow™ Turbo V; TurboIonSpray®; Atmospheric-pressure chemical ionization (APCI); DuoSpray™, and NanoSpray® III, Phytronix LDTD, Advion LESA Clarity, Digital PicoView, NanoSource, SelexION®+

Downloads & Resources

Resources

Software

Chemical Standards

Part NumberKit Name/InstrumentDescription
4406127 MS Chemical Kit 1, Low-High Conc. PPGs

Standards chemical kit with low/high concentrations of polypropylene glycol polymers (PPGs).
This kit includes all solutions necessary for installation and calibration for all SCIEX Triple Quads, excluding the API 2000™ and API 3000™ instruments.
4412399 MS Chemical Kit2, Higher Conc. PPGs

Standards chemical kit with High Concentrations PPGs.
This kit includes all solutions necessary for installation and calibration for all API 2000 and 3000 instruments.
4465788 SelexION® Calibration Solution

Installation and Calibration Solution for SelexION Ion Mobility Source.
5056819 Essential LCMS Performance Kit Environmental

Certified QC kits for use on SCIEX Triple Quad and QTRAP® 4500, 5500, 6500 and 6500+ systems, coupled with high flow LC systems, to test performance in both positive and negative modes for Environmental applications.
5056822 Essential LCMS Performance Kit Toxicology

Certified QC kits for use on SCIEX Triple Quad and QTRAP 4500, 5500, 6500 and 6500+ systems, coupled with high flow LC systems, to test performance in both positive and negative modes for Toxicology applications.
5056816 Essential LCMS Performance Kit Small Molecule Pharma

Certified QC kits for use on SCIEX Triple Quad and QTRAP 4500, 5500, 6500 and 6500+ systems, coupled with high flow LC systems, to test performance in both positive and negative modes for Pharma (Small Molecule) applications.
5056815 Essential LCMS Performance Kit - Peptide

Certified QC kits for use on SCIEX Triple Quad and QTRAP 4500, 5500, 6500 and 6500+ systems, coupled with high flow LC systems, to test performance in positive mode for Peptide applications.

RUO-MKT-18-2502-D

triple-quad-6500plus-image-callout
1. Mass Range

Triple quadrupole: 5 – 2,000 Da

2. Flexible Ionization Options

Options include OptiFlow Turbo V™ Electrospray (ESI) ionization and heated nebulizer ionization probes.

Triple Quad 6500+ System
1
2
3
4
5
3. Selective, Robust and Powerful Ion Separation

Optional SelexION®+

4. Detector Type

IonDrive™ High Energy Detector+

5. Polarity Switching

5 msec in MRM and Scheduled MRM™ modes

triple-quad-6500plus-intro-icontop-4col

Enhancements for the 6500+ Series

The production of more ions with the IonDrive™ Turbo V source is just one of the enhancements you will see with the Triple Quad 6500+. Also added is the ability to capture and transmit more ions with the unique IonDrive™ QJet guide and greater detection with the new IonDrive™ High Energy Detector+.

IonDrive™ Turbo V Source

IonDrive Turbo V Source

The legendary Turbo V™ source increases ion production by using enhanced gas flow dynamics and optimized heater configuration to improve reliability, reproducibility, and robustness.

Learn More
IonDrive™ QJet Guide

IonDrive QJet Guide

With its dual stage design, the IonDrive QJet Guide improves sensitivity and ion capture rate while focusing ions more efficiently than funnel approaches.

Learn More
IonDrive™ High Energy Detector+

IonDrive High Energy Detector+

Pulse counting fundamentals achieve ultra sensitivity at the lower end, while increasing linearity at high count rates. The result is the collection of more ions across a broader dynamic range.

Learn More
SelexION®+ DMS Technology

SelexION®+ DMS Technology

Ideal development suite for applications requiring the separation of isobaric species, isolation of challenging co-eluting contaminants, and reduction of high background noise.

Learn More
