How to set Root Directory in SCIEX OS Software?


Date: 10/13/2023
Categories:

0 Votes
   Print    Rate Article:

For research use only. Not for use in diagnostic procedures.


Answer

In the SCIEX OS Software, open under “Management” the tab “Configuration” then “Projects”. Go to “Advanced” and click on the plus symbol next to the “Current root directory” field.
A close-up of a sign  Description automatically generated

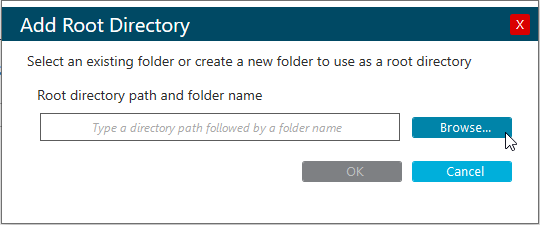

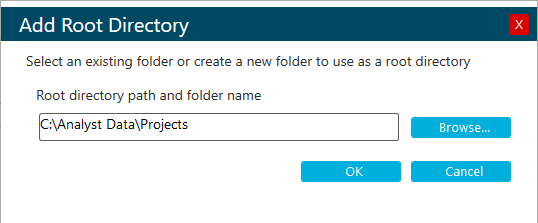

Click on “Browse” and select an existing folder or create a new folder to use as a root directory.
A screenshot of a computer  Description automatically generated
A screenshot of a computer  Description automatically generated

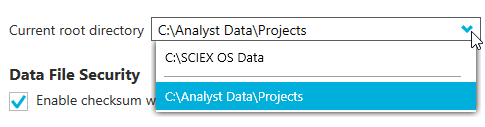

Click ok and the new created root directory appears in the drop-down menu of the “Current root directory” field. Chose the root directory you want to use.
A close-up of a data box  Description automatically generated
Refer to Impermissible Symbols for Root Directory Paths and Project Names in SCIEX OS Software to learn which symbols cannot be used when naming a root directory path or a project in SCIEX OS software.
