Creating Reports where Internal Standard Peaks Appear Normalized to the Analyte Peak in Chromatograms

For research use only. Not for use in diagnostic procedures.

Issue Description

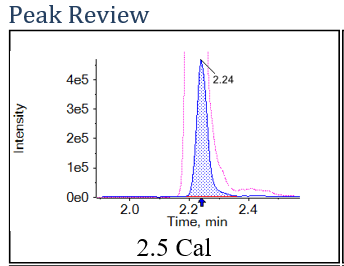

When viewing an analyte's chromatogram in a report, the internal standard peak that is overlaid with the analyte's is not normalized in the report's chromatogram; part of the internal standard peak appears out-of-bounds of the peak review image.

Resolution

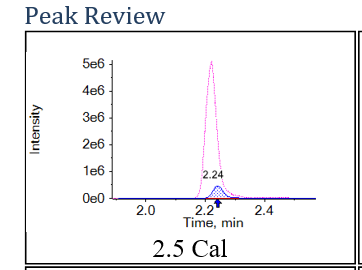

The peaks displayed on the report have the same formatting as the peaks appearing in the software's peak review pane. If you see an internal standard peak in the peak review pane of MultiQuant™ Software or SCIEX OS Software that is not normalized to the analyte's peak size, double click on the x-axis of that particular chromatogram. Now, when the report is created, the internal standard peak will appear normalized to the analyte peak.
