How to switch from LOW mass to HIGH mass acquisition in both SCIEX OS and Analyst software.

For research use only. Not for use in diagnostic procedures.

Answer

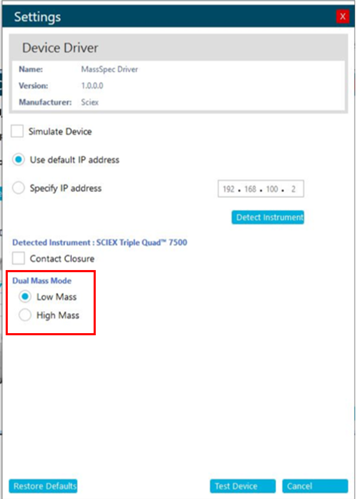

In SCIEX OS

• Step 1: Go to Management, CONFIGURATION

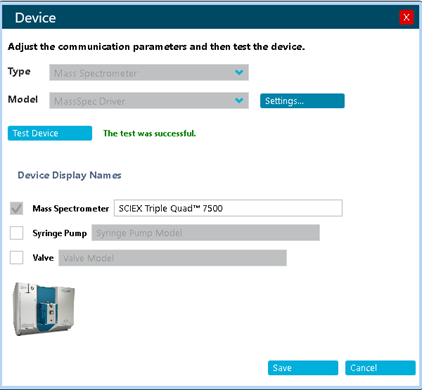

• Step 2: Within DEVICES select your Instrument and EDIT device
• Step 3: Click in SETTINGS

• Step 4: Select either Low Mass or High Mass in the Dual mass mode section. Save it.

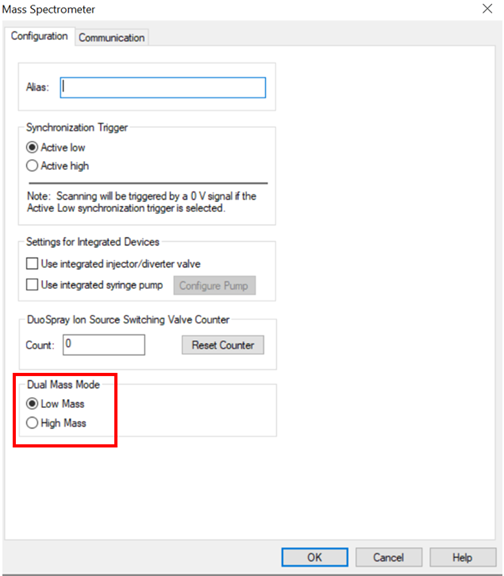

In Analyst

• Step 1: Go to Hardware Configuration
• Step 2: In the list of available hardware profiles, select the one to be modified and click on EDIT PROFILE.
• Step 3: In the list of devices select the mass spectrometer and click on SETUP DEVICE.
• Step 4: Select either Low Mass or High Mass in the Dual mass mode section. Save it.
