How to Use the MAM Script in BioPharmaView™ Software 3.0.2 to Transfer Peptide Information to SCIEX OS Software


Date: 07/20/2021
Categories: SCIEX OS , Pharma CRO , Biologics Explorer , Academia Omics

0 Votes
   Print    Rate Article:

For research use only. Not for use in diagnostic procedures.


Answer

BioPharmaView™ software 3.0.2 has improved its multiple attributes monitoring (MAM) workflow, and the software now includes a script, MAM-BPV to Analytics Converter, used to create a quantitative processing method for the Analytics mode of SCIEX OS software.The script can be found in the following directory:

C:\AB SCIEX\BioPharmaView\Data.

To use the script, follow these steps:
1. Create a MAM peptide attribute.
User-added image

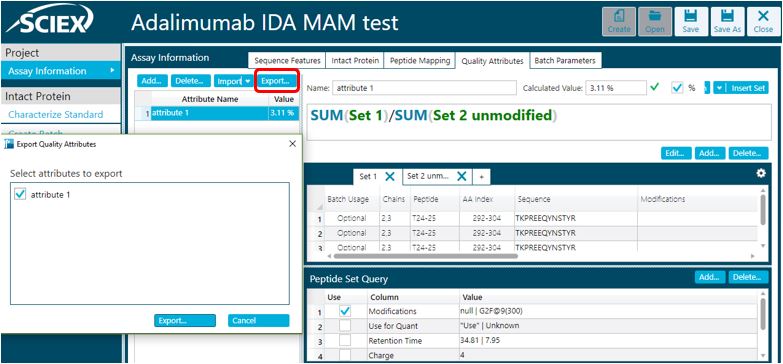

2. Export the attribute, which will create a .cqa file.

3. Drag the.cqa file onto the MAM script to create a text file that can be directly imported into SCIEX OS software.

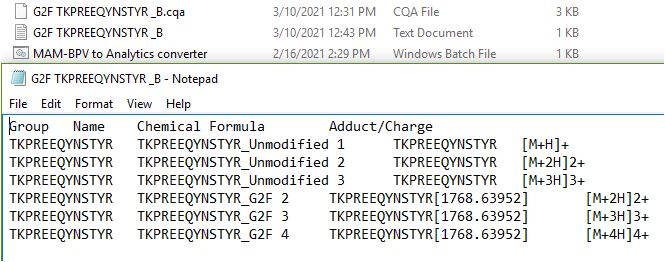

The output text file is shown:

User-added image

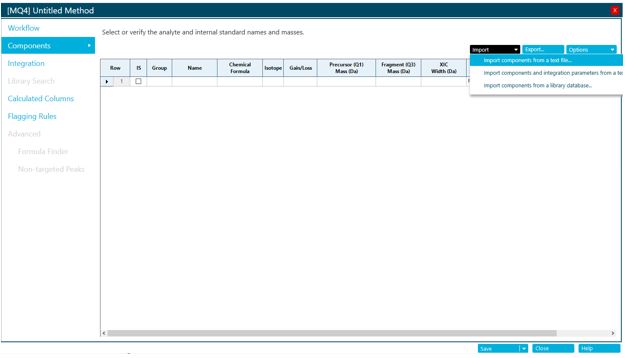

4. Import the text file into a SCIEX OS software analytics session by selecting the import button in the components tab for the creation of a quantitative method.

User-added image
