Reporter 3.2: Adding Custom Columns to a Report Template


Date: 02/28/2019
Categories: Analyst Software

2 Votes
   Print    Rate Article:

For research use only. Not for use in diagnostic procedures.


Issue Description

After custom columns were added to an acquisition batch file, those columns with their appropriate data could be seen in the Analyst® software results table.  These custom columns need to be added to the report template as well. Adding a text tag to the report template with the type set to Custom did not allow the custom data to be shown in the report.


Resolution

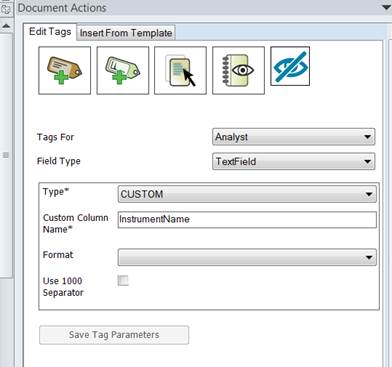

To add a value from custom column, one needs to add TexField with “Custom” field, as seen below.
For Analyst Reporter, custom column names cannot have spaces.

Example: A custom column, Instrument Name, needs to be renamed to "Instrument_Name" or "InstrumentName" to make it work in Analyst Reporter 3.2 when reports are generated through Analyst software.

Note: if MultiQuant™ software is used to generate reports, spaces are allowed in custom column names.

User-added image
