Centering a Peak in a SCIEX OS Software Peak Review Pane


Date: 10/11/2019
Categories: SCIEX OS

0 Votes
   Print    Rate Article:

For research use only. Not for use in diagnostic procedures.


Answer

When reviewing peaks in a SCIEX OS software results table, its possible that the peak may not be centered in the peak review pane. To adjust the location of a peak in the window and to center it, do the following:
1) After creating the results table and displaying the peaks by selecting the peak review icon, click Options and then Peak review display settings
2) In the Zooming tab, select Zoom time axis to view peak

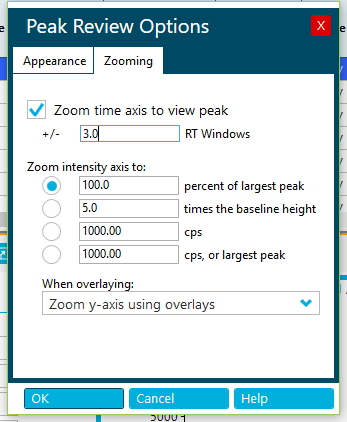

3) Add the desired amount of time in the RT window field (see screenshot)
4) Select OK to center the peaks

User-added image
