Resolution of ether- and diacyl-linked phospholipids by differential ion mobility spectrometry (DMS)

SelexION® Technology

Cyrus Papan, Baljit K Ubhi, J. Larry Campbell and Paul RS Baker
SCIEX



The structural diversity among phospholipids is surprisingly complex, with as many as 7,000 different phospholipid molecular species in a biological sample. Often overlooked when considering structural diversity is the bond type at the sn-1 position of the glycerol backbone, which can be an ester bond, an ether bond or a vinyl-ether bond. Certain cell types, especially inflammatory cells and mitochondria-rich cells such as cardiomyocytes, have elevated levels of ether-linked lipids.



The challenge

Ether-linked and diacyl-linked phospholipids are near isobars; therefore it is necessary to resolve ether-linked and diacyl-linked phospholipid molecular species to adequately characterize their molecular species compositions. Chromatographic separation is a possibility, but due to the diversity of molecular species within a phospholipid class, this approach is not practical for profiling experiments.  Even with high resolution MS, product ion analysis depends on a low-resolution isolation step that would generate a non-specific, convoluted MS/MS spectrum from the nearly isobaric compounds.



Click to enlarge

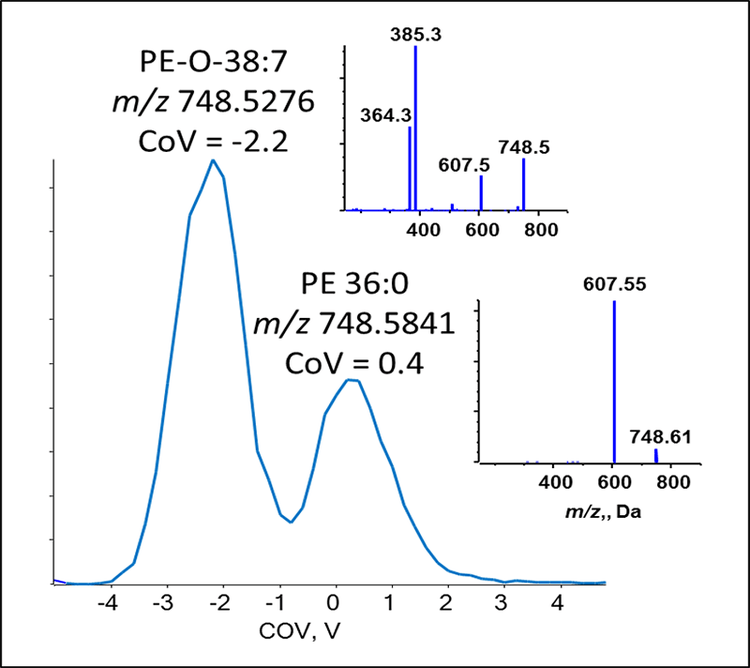

Figure 1. SelexION Technology resolves ether- and diacyl-linked molecular species of phosphatidylethanolamine. Commercially available PE extract was infused and analyzed by using a QTRAP® 6500 System equipped with SelexION Technology, positive ion SIM scan mode was used to monitor m/z 748.6 while ramping the compensation voltage (CoV). Appearing in the spectrum are two distinct peaks: PE O-38:7, an ether-linked PE molecular species (i.e., PE plasmalogen with 18:1 ether-linked at the sn-1 position and 22:6 esterified at the sn-2 position of glycerol backbone), and PE 36:0, a diacyl-linked species. (Inset) Subsequent product ion analysis of m/z 748.6 using species-specific CoV values generated spectra consistent with either an ether- or diacyl-linked PE molecular species.

The solution

SelexION Technology (DMS) resolves molecules prior to MS based on their chemical properties and is effective at separating ether-linked lipids from diacyl-linked lipids in complex.  Here, the presence of a carbonyl at the sn-1 position of the glycerol backbone changes the dipole moment and allows resolution of these phospholipid sub-classes and acquisition of non-interfered MS and MS/MS spectra for qualitative and quantitative analysis.

SelexION Technology can resolve ether-linked from diacyl-linked PE molecular species without the need for high resolution MS or complicated chromatography.

References

  1. Differential mobility separation for improving lipidomic analysis by mass spectrometry - SelexION® Technology on QTRAP® Systems. SCIEX technical note RUO-MKT-02-4802-A.
