Change CAD Gas Settings from Simplified (Low, Medium, High) to Operator (0-12) in Analyst® Software

Date: 09/09/2024
Categories: Analyst Software

0 Votes
   Print    Rate Article:

For research use only. Not for use in diagnostic procedures.


Answer

To change the setting make sure that the hardware profile is activated.

  1. From the navigation bar select “Configure” or “Manual Tuning” to access Tools – Settings – Parameter Settings.

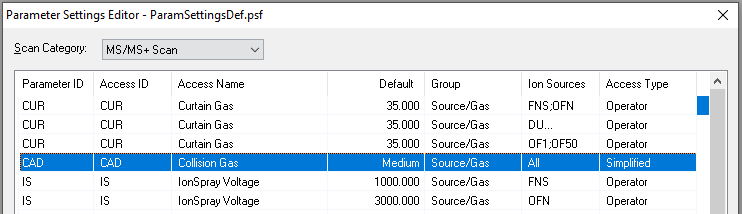

  2. “Scan Category”: Select “MS/MS+ Scan”.
A screenshot of a computer Description automatically generated
Double click on the row for CAD gas.

  1. The opening window shows the default value (here: Medium).
A screenshot of a computer setting Description automatically generated

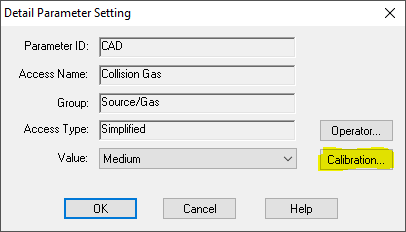

Click on “Calibration”.

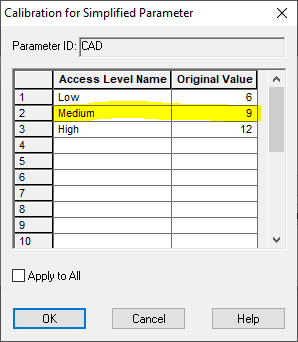

  1. The opening window will display the number value for the default value (here: Medium).
A screenshot of a computer Description automatically generated
The number displayed (here: 9) will be the default setting for the Operator option.
Click “OK”.

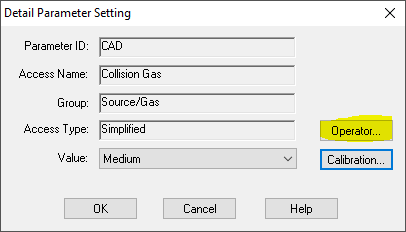

  1. Click “Operator”.
A screenshot of a computer Description automatically generated
A screenshot of a computer Description automatically generated

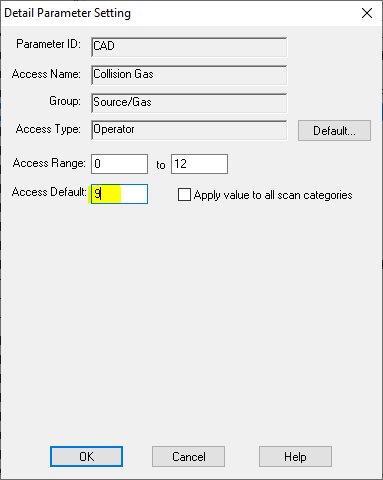

Enter the number value for the default setting in Simplified obtained in step 4 and select “OK”.

  1. Repeat step 2 to 5 for the scan categories “MS/MS - Scan”, “LIT + Scan” and “LIT + Scan”.

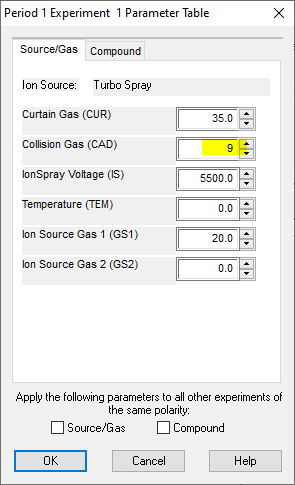

In your MRM and LIT methods you will then have the option to change and test the CAD gas with smaller increments.
