Exporting PDA data from 32Karat into ASCII or AIA (.CDF) files


Date: 04/05/2019
Categories: PA 800 Plus Pharmaceutical Analysis System

0 Votes
   Print    Rate Article:

For research use only. Not for use in diagnostic procedures.


Answer

Exporting PDA data from 32Karat into ASCII or AIA (.CDF) files


The order of channel and data information in an exported ASCII file is as follows:

 All detector channels used in order
 Peak Detect
 Scan Data
 Multi-Chromatogram data in PDA options in order of listing
 Spectrum Max Plot Data
 Time Program Separation Data
 Auxilliary data for voltage, current, power (whichever is being used)
So when selecting the export option in the method, you will have to specify which channel you want to export.  Follow the steps below:

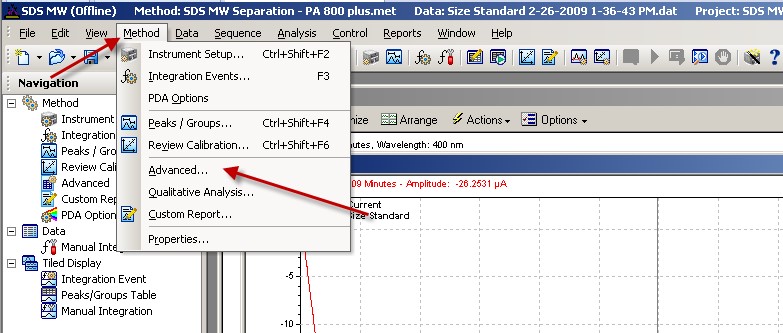

A. Under Method, select Advanced:

User-added image

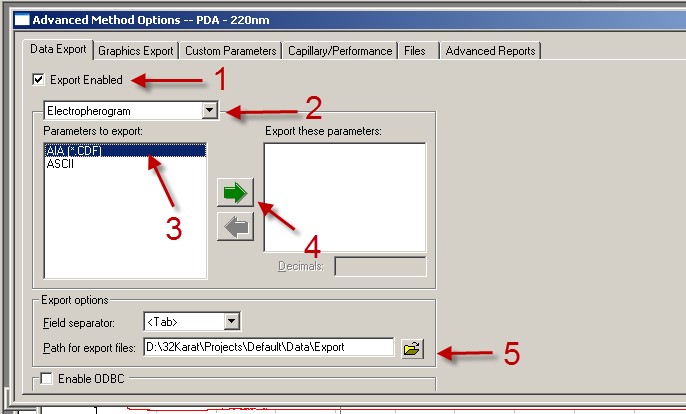

B. In the new window, select “Export Enabled” (1),  “Electropherograms” (2),  “ASCII” or “AIA” files (3), then click on the green arrow to move it to the “Exported parameter” box (4).  The “Field Separator” should be set as “Tab”, and the folder for exported files selected (5):

User-added image


C.  Please note at the top of this window that this export window is for the 220 nm wavelength only.  If you wish to export other wavelengths, please select the desired one in the software selection tab:

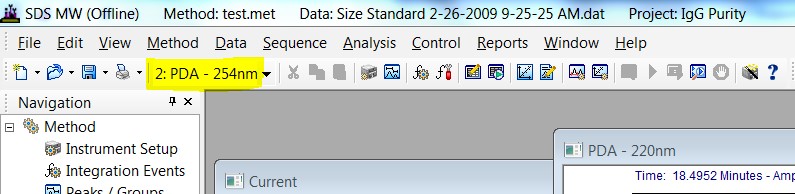

e.g. at 254 nm (selection 2)

User-added image

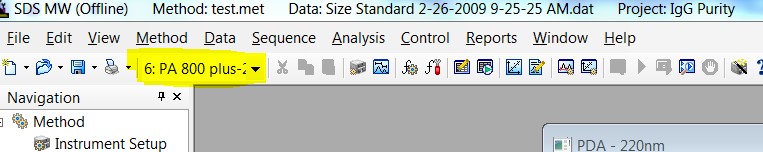

e.g. at the wavelength select in the “PDA Mixed View” (selection 6)

 User-added image

For each wavelength selected, you will need to go into the export tab and select the export option as described in sections A and B.


D. Save the method.


E. If you want to export the data files after each run:

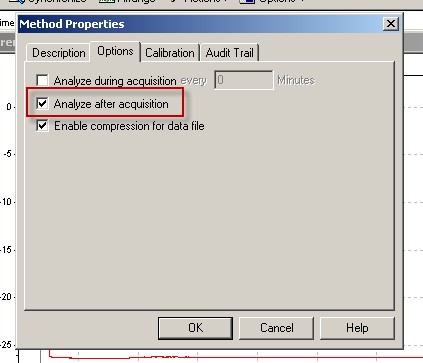

- Go to Method, Properties, then under the Option Tab,  make sure to select: “Analyze after Acquisition”:

User-added image


If you want to export only selected files:

- Create a separate method file to export the data (that will have the Export Enabled option selected).
- Open the data file you want to export, then click “Analyze” under “Analysis”.  The data will be exported to the export folder you selected.
