How do I set up auto-report generation in the Batch module in SCIEX OS software?

For research use only. Not for use in diagnostic procedures.

Answer

In SCIEX OS software 3.4.5, users can automatically generate reports after data acquisition and the creation of results tables. To do this from the Batch Automation screen, follow these steps:
(1) Open the Batch workspace and fill in the information required in the selected columns.

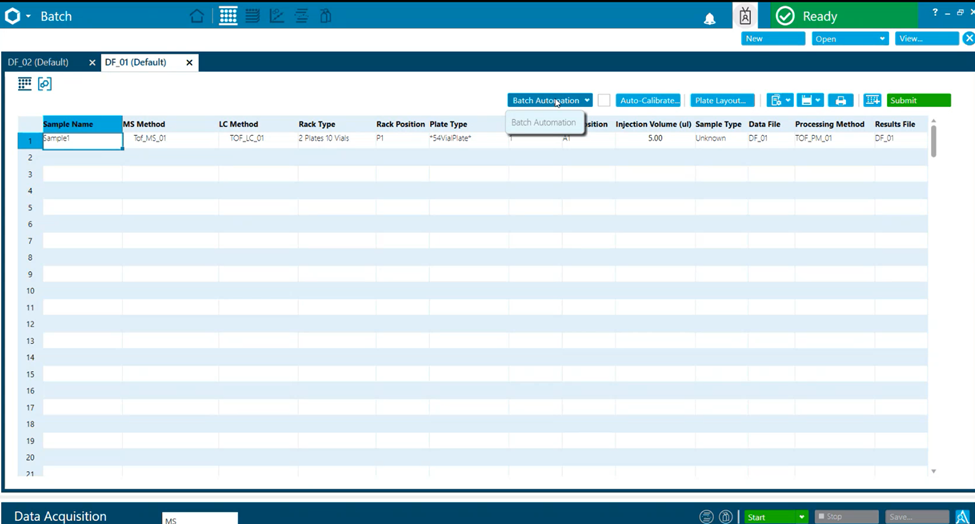

(2) Select the Batch Automation drop-down menu.

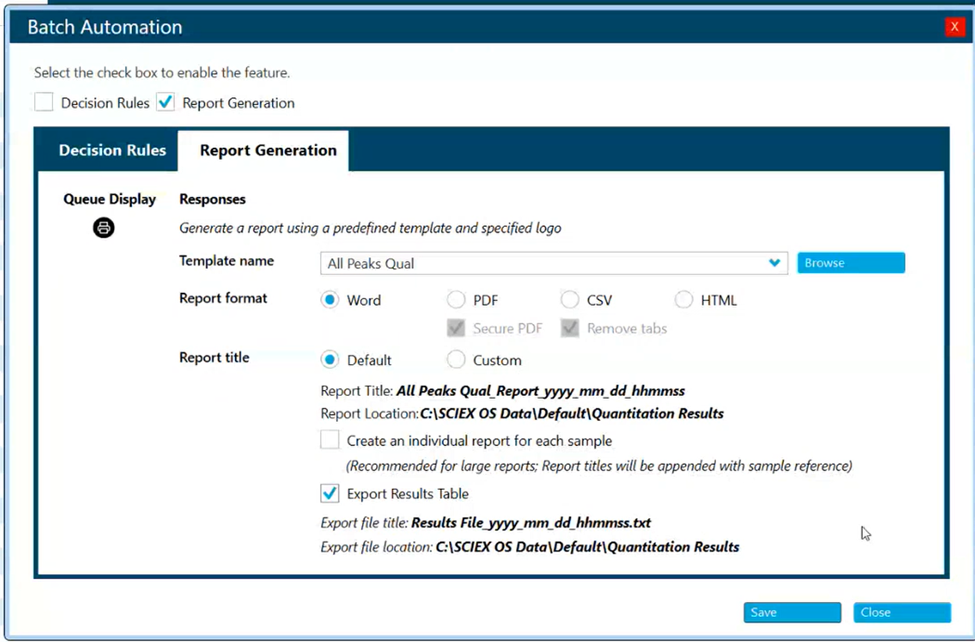

(3) Batch Automation window will appear. Choose the Report Generation option. Here, you can select a report template, define the report format, and set the report title. Click Save.

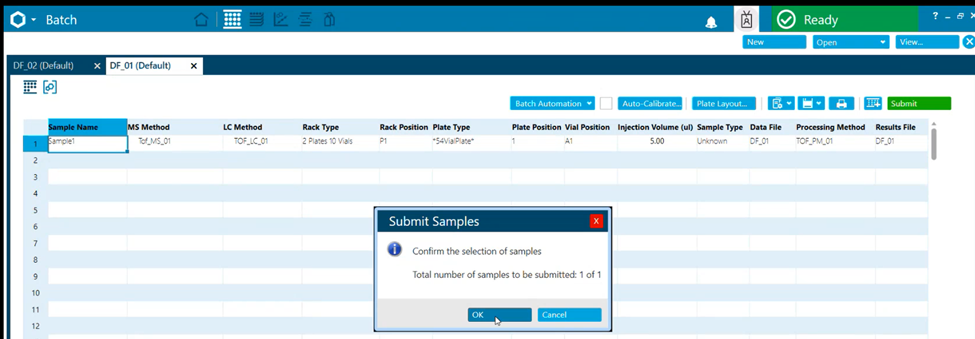

(4) Ensure the system has been equilibrated with the same MS and LC methods. Then, choose Submit.

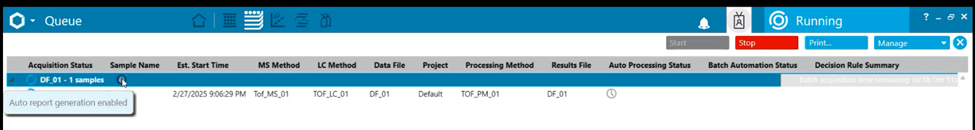

(5) In the Queue workspace, please make sure the checkbox for Auto report generation enabled is selected.

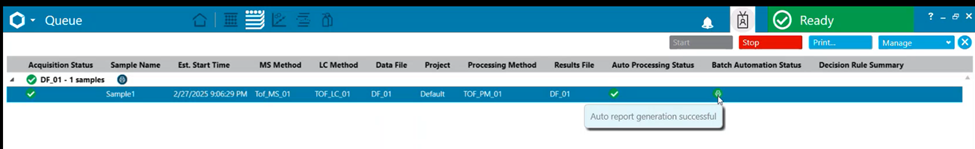

(6) Once the batch acquisition is completed, the Auto Processing Status column displays a green checkmark when automatic report generation is successful.

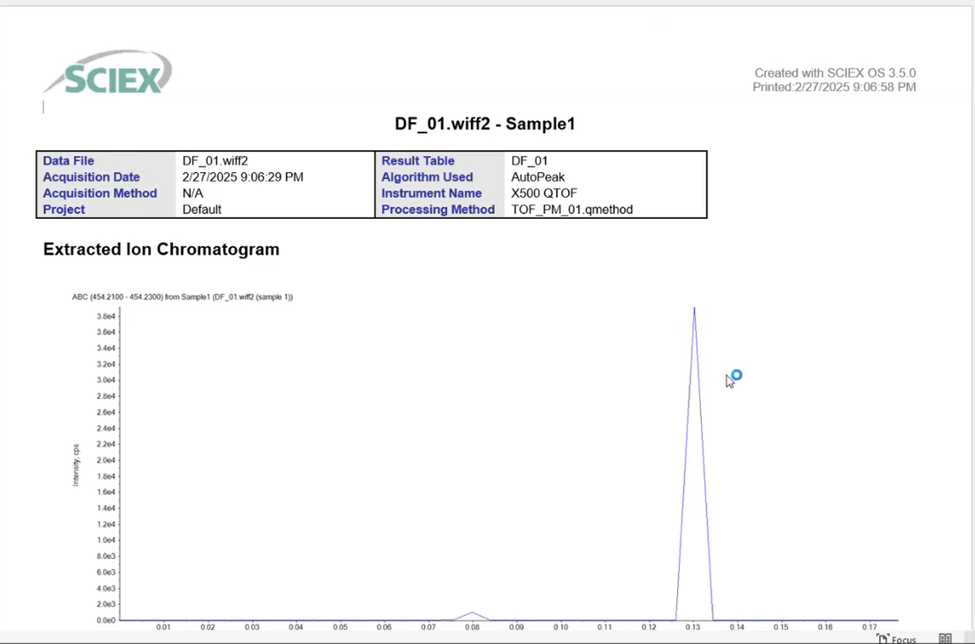

(7) Select the green icon in the Queue under Batch Automation Status to display the report.
