How to build a polarity switching method with SCIEX OS ?


Date: 08/09/2023
Categories: SCIEX OS

0 Votes
   Print    Rate Article:

For research use only. Not for use in diagnostic procedures.


Answer

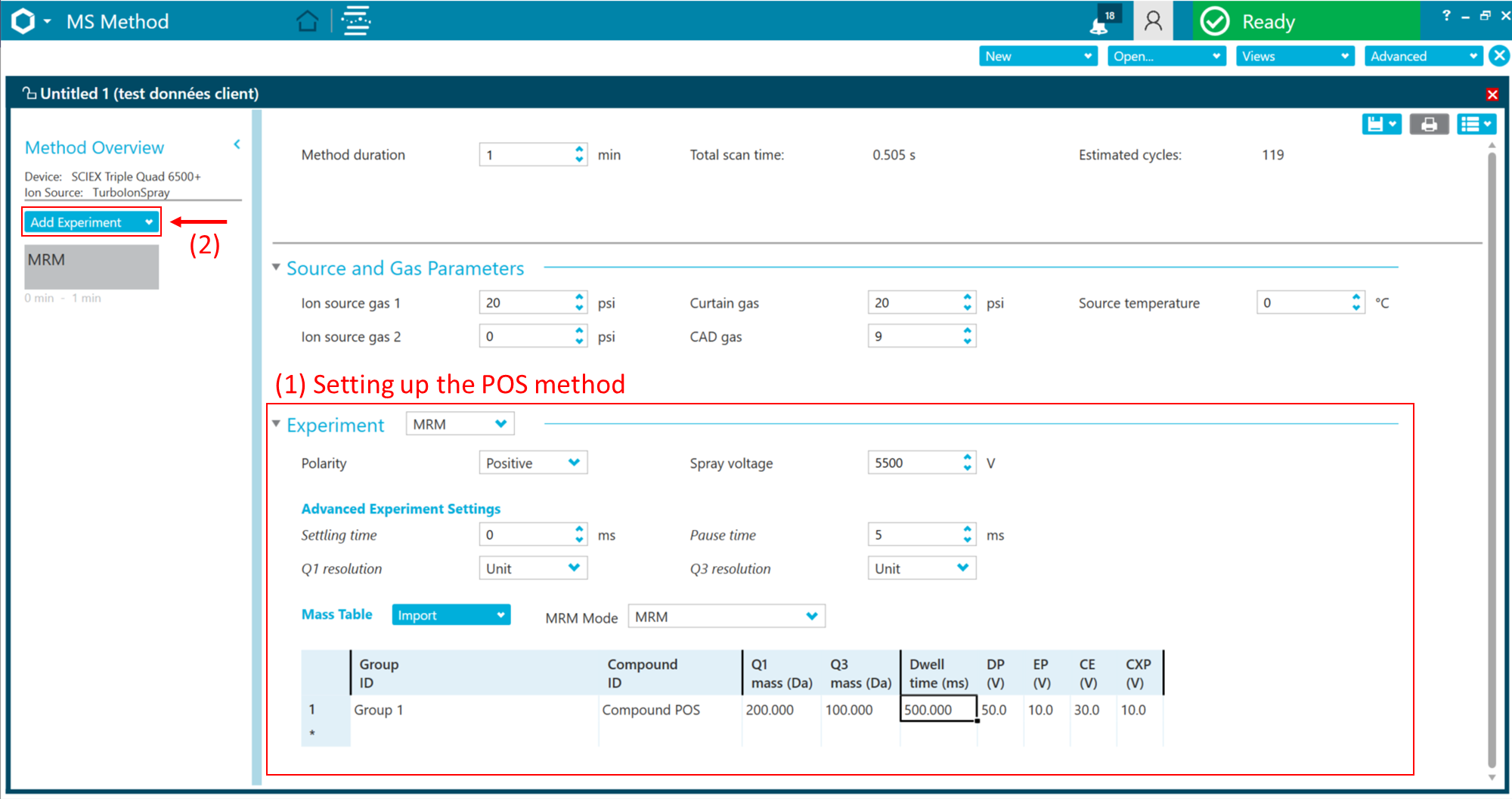

Step 1: Set the method with positive polarity in the first experiment available by default.
Step 2: Click on "add an experiment" to access the second experiment.

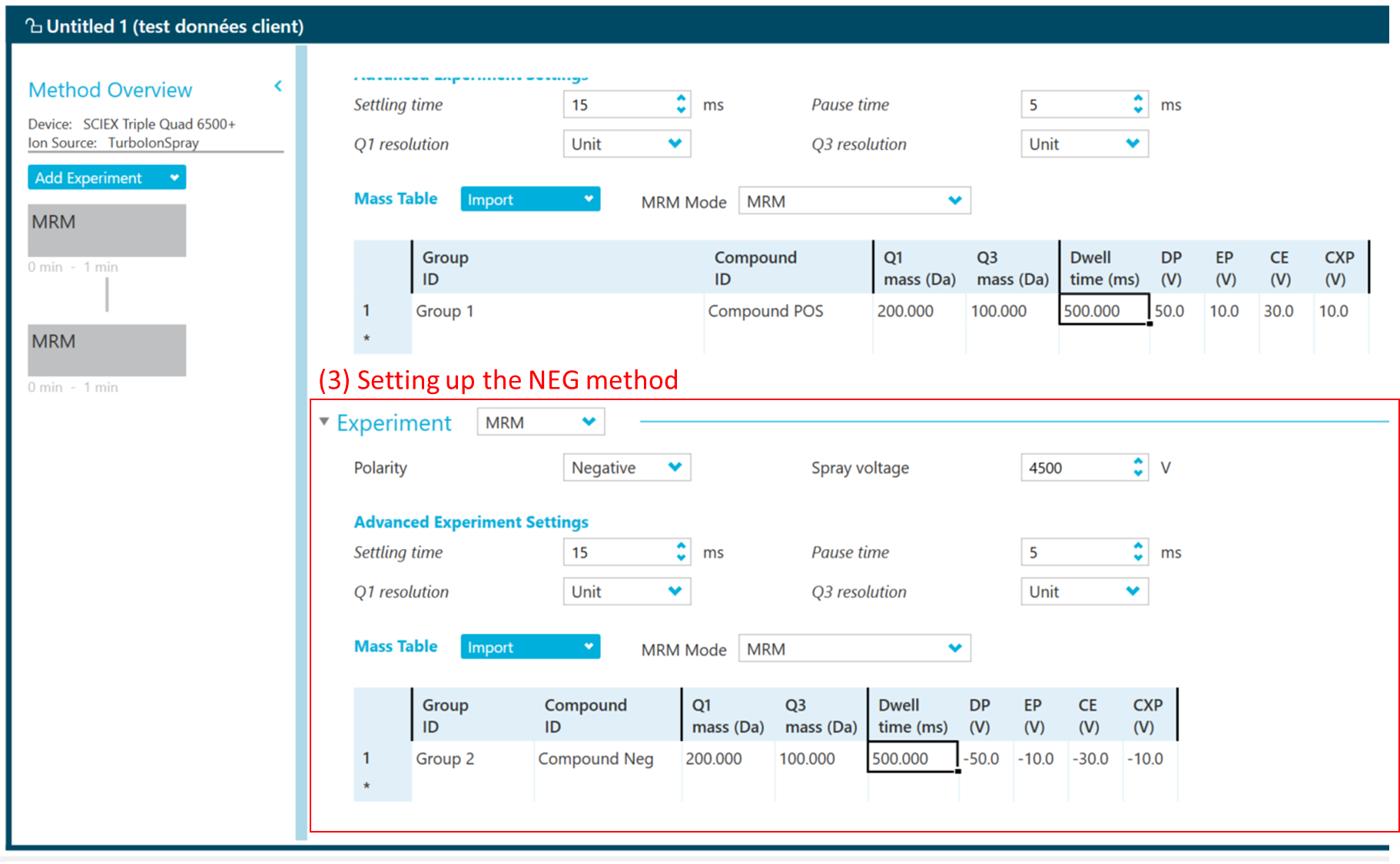

Step 3: Set the method with negative polarity in the second experiment.

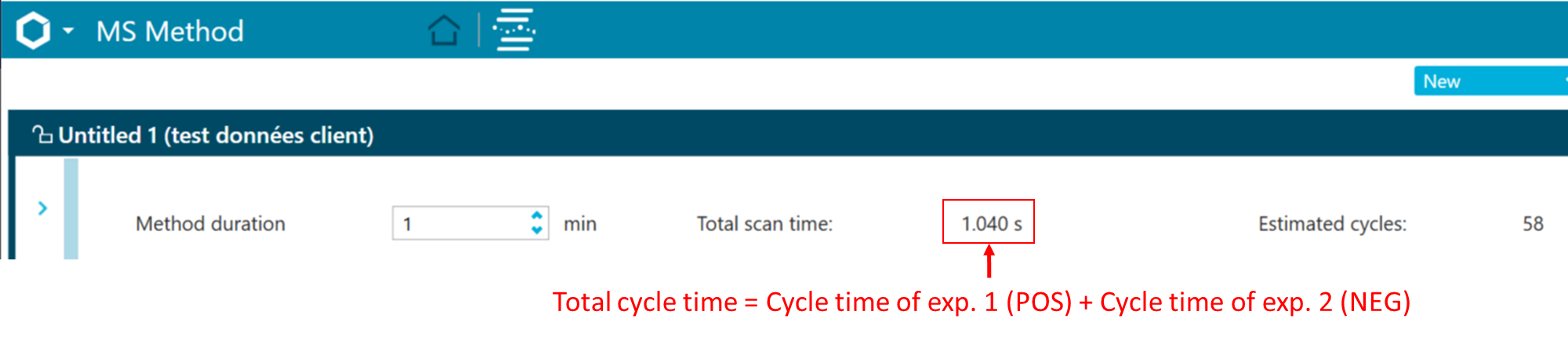

It is important to understand that the cycle time displayed is the sum of the cycle time of each experiment in the method.

The screenshots and explanations are based on SCIEX OS 3.1.X but the principle is the same for older versions. You still have to create two experiments with one for the positive analysis and one for the negative analysis. This procedure is generic across all instruments.
