Separating Two Experiments Acquired within One Period in Analyst® Software

For research use only. Not for use in diagnostic procedures.

Issue Description

Data from two experiments acquired within one period in Analyst® software needs to be shown in separate panes in Explore mode.







Resolution

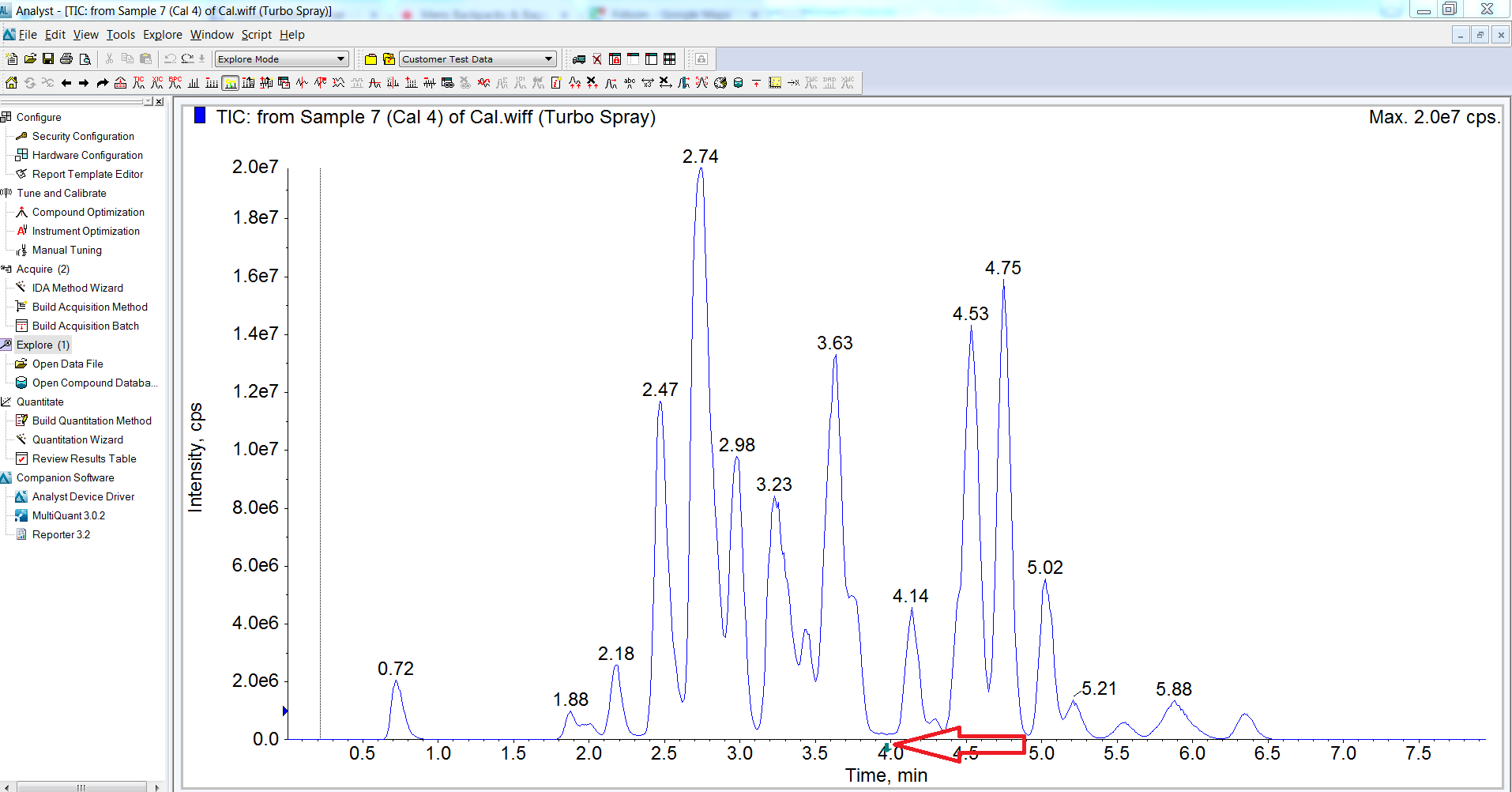

To view data from two different experiments acquired within one period, open the data file in Explore mode (example TIC shown below). Double click the green arrow at the bottom of the x-axis of the combined TIC to separate the TICs from each experiment.

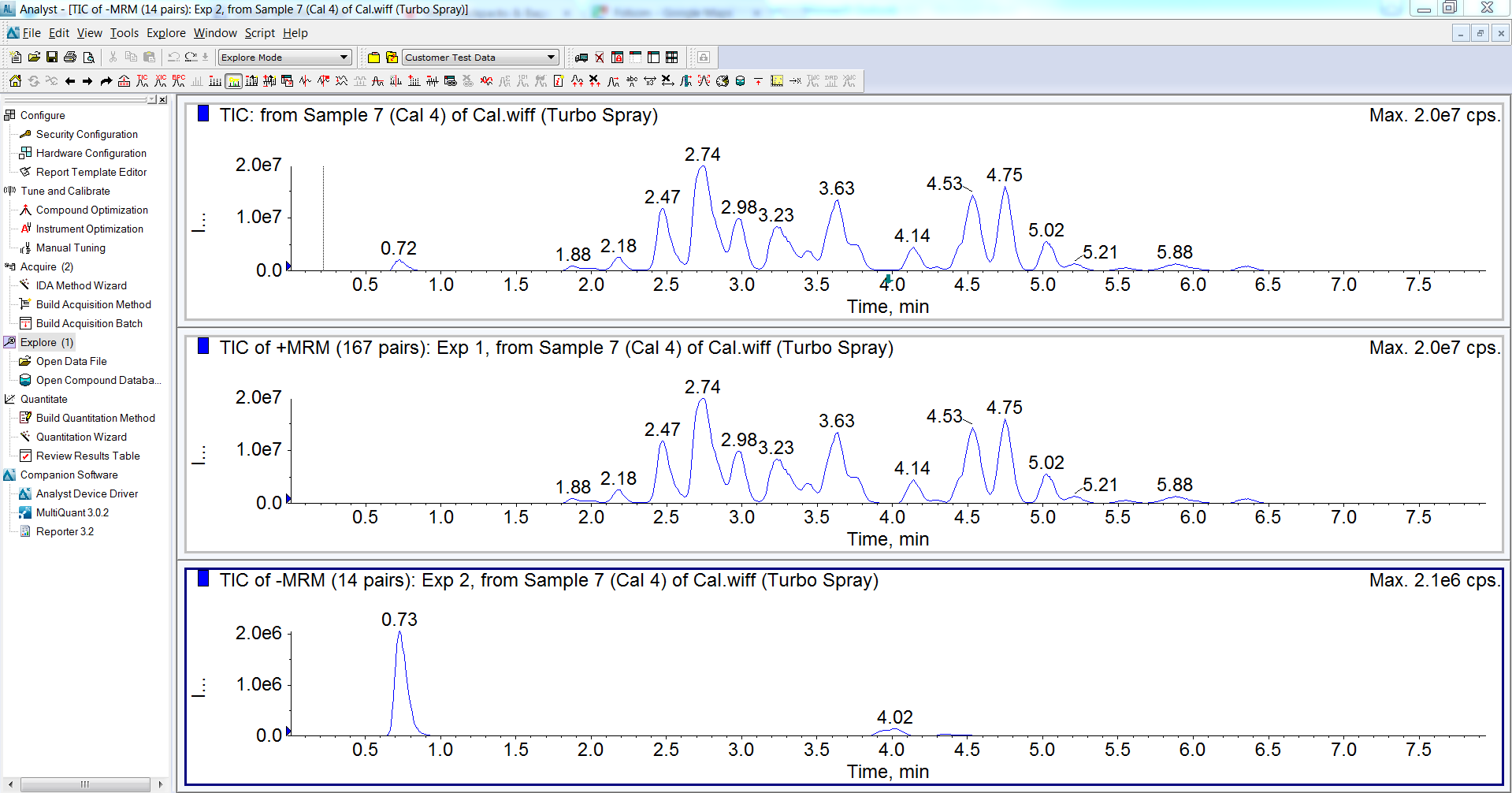

The combined TIC will remain open, and the individual TICs from each experiment will open below it, as shown.
