How to set two binary pumps in a hardware profile with a Shimadzu LC chain and Analyst® software


Date: 08/09/2023
Categories: Analyst Software

0 Votes
   Print    Rate Article:

For research use only. Not for use in diagnostic procedures.


Answer

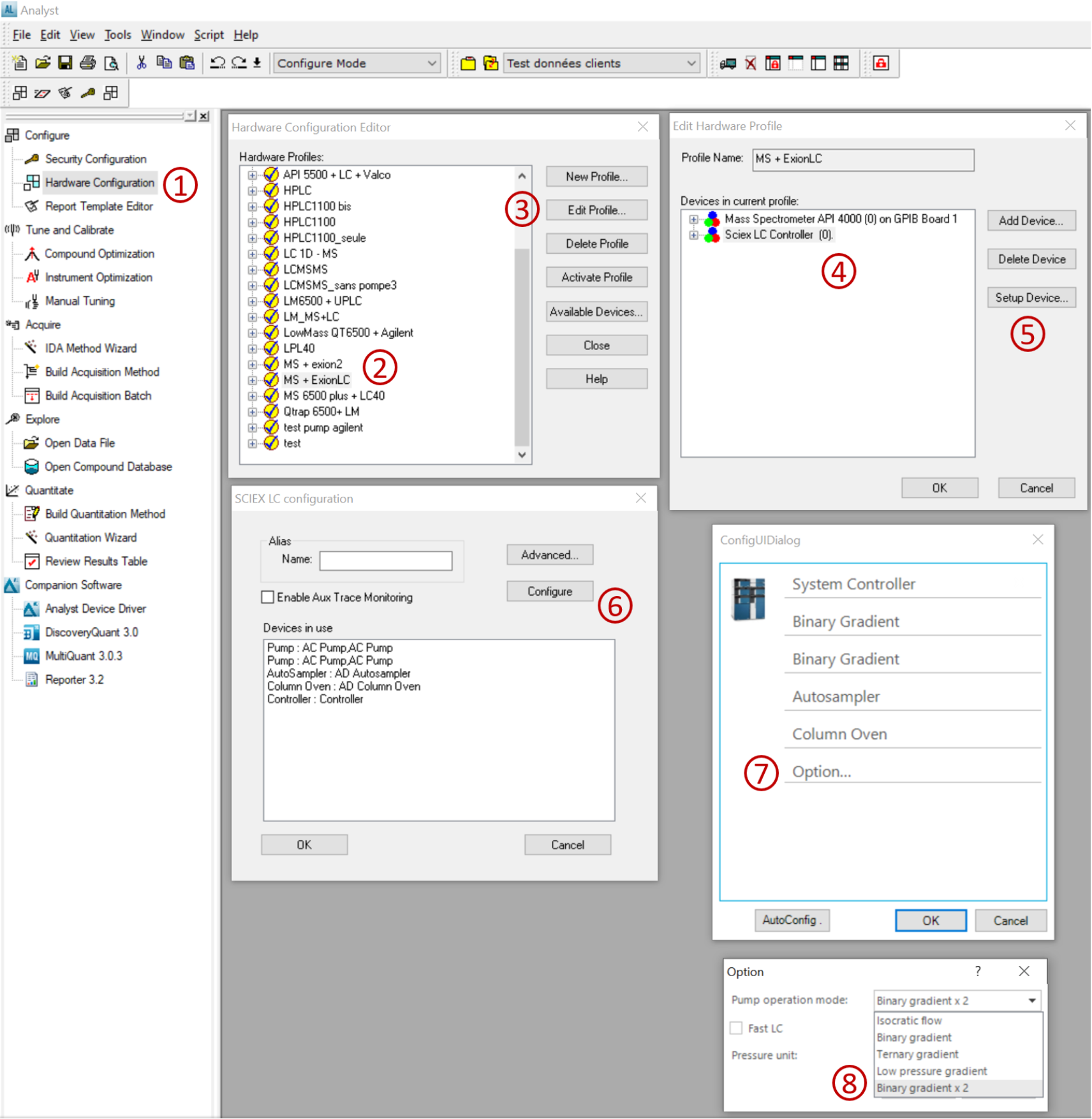

Procedure to set up two Shimadzu binary pumps in Analyst's hardware profile :

  1. Click on Hardware Configuration.
  2. Select Hardware profile.
  3. Click on Edit Profile.
  4. Select LC part.
  5. Click on Setup Device.
  6. Click on Configure.
  7. Click on Option.
  8. In Pump operation mode, select Binary gradient x 2.


​​​​​
