Changing the Y-Axis Scale from Relative Intensity Percent in Analyst® Software,


Date: 09/22/2023
Categories: Analyst Software

0 Votes
   Print    Rate Article:

For research use only. Not for use in diagnostic procedures.


Issue Description

When opening raw data in Analyst® software, the Y-axis is labeled as Rel Int. % with values from 0-100% instead of showing the true intensity value.





Resolution

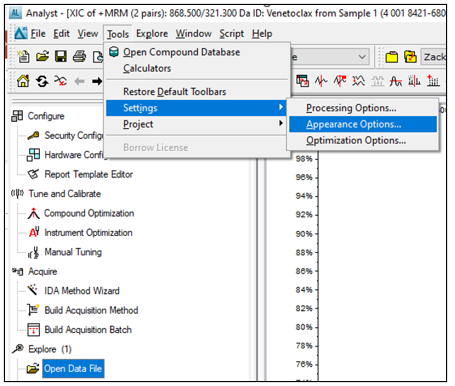

To change the Y-axis to the true intensity value, navigate to the Tools menu in Explore mode, and then select Settings and Appearance Options, as shown.

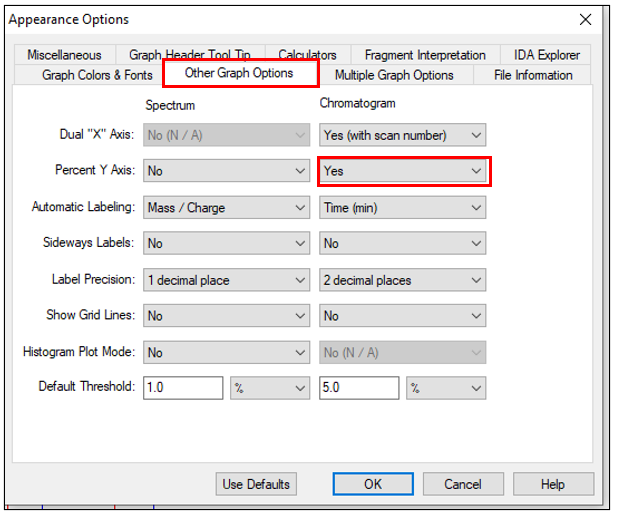

In the Appearance Options window, select Other Graph Options. Under Percent Y Axis, change the value under the Chromatogram column from Yes to No to set the Y-axis scale back to intensity.
appearance options.PNG
