Overlaying Two or More Extracted Ion Chromatograms (XICs) in Analyst® Software Explore Mode


Date: 03/22/2018
Categories: Analyst Software

0 Votes
   Print    Rate Article:

For research use only. Not for use in diagnostic procedures.


Answer

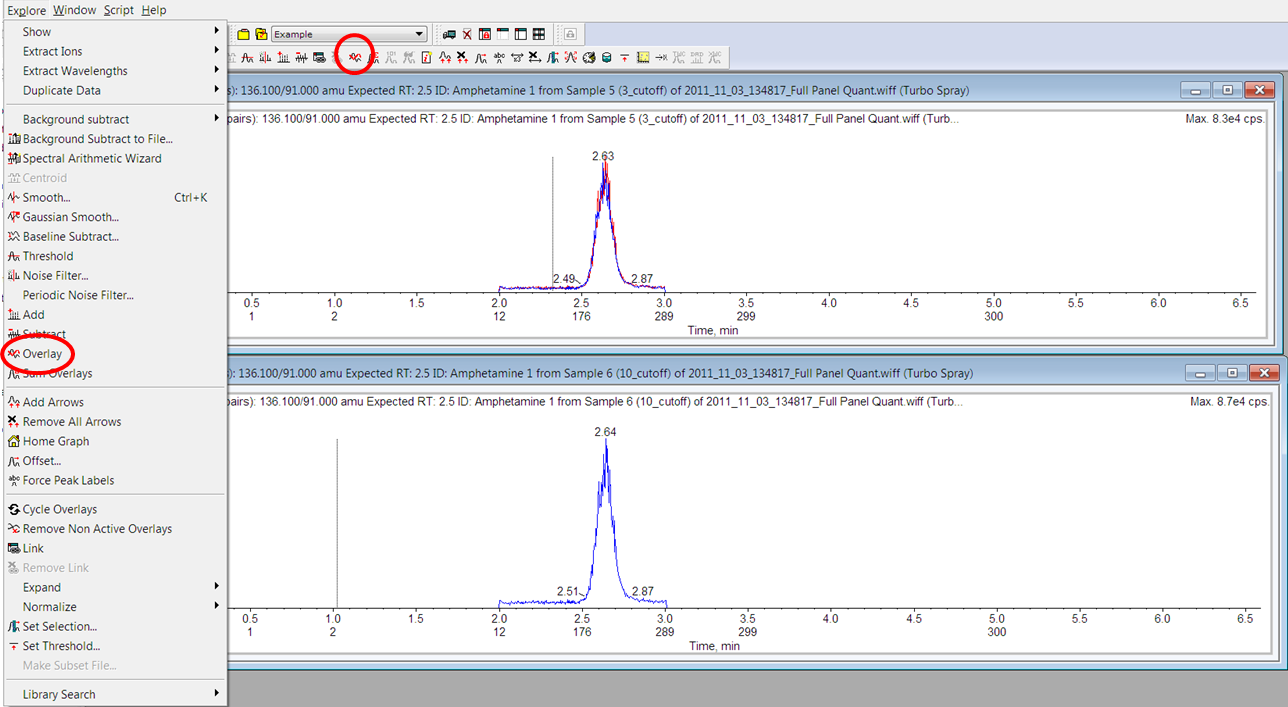

To overlay extracted ion chromatograms (XICs) in Analyst® software Explore mode, click on the first XIC, then select Overlay in the Explore menu (or the icon in the horizontal tool bar User-added image), and then select the second XIC. The second XIC will now appear in the first XIC.

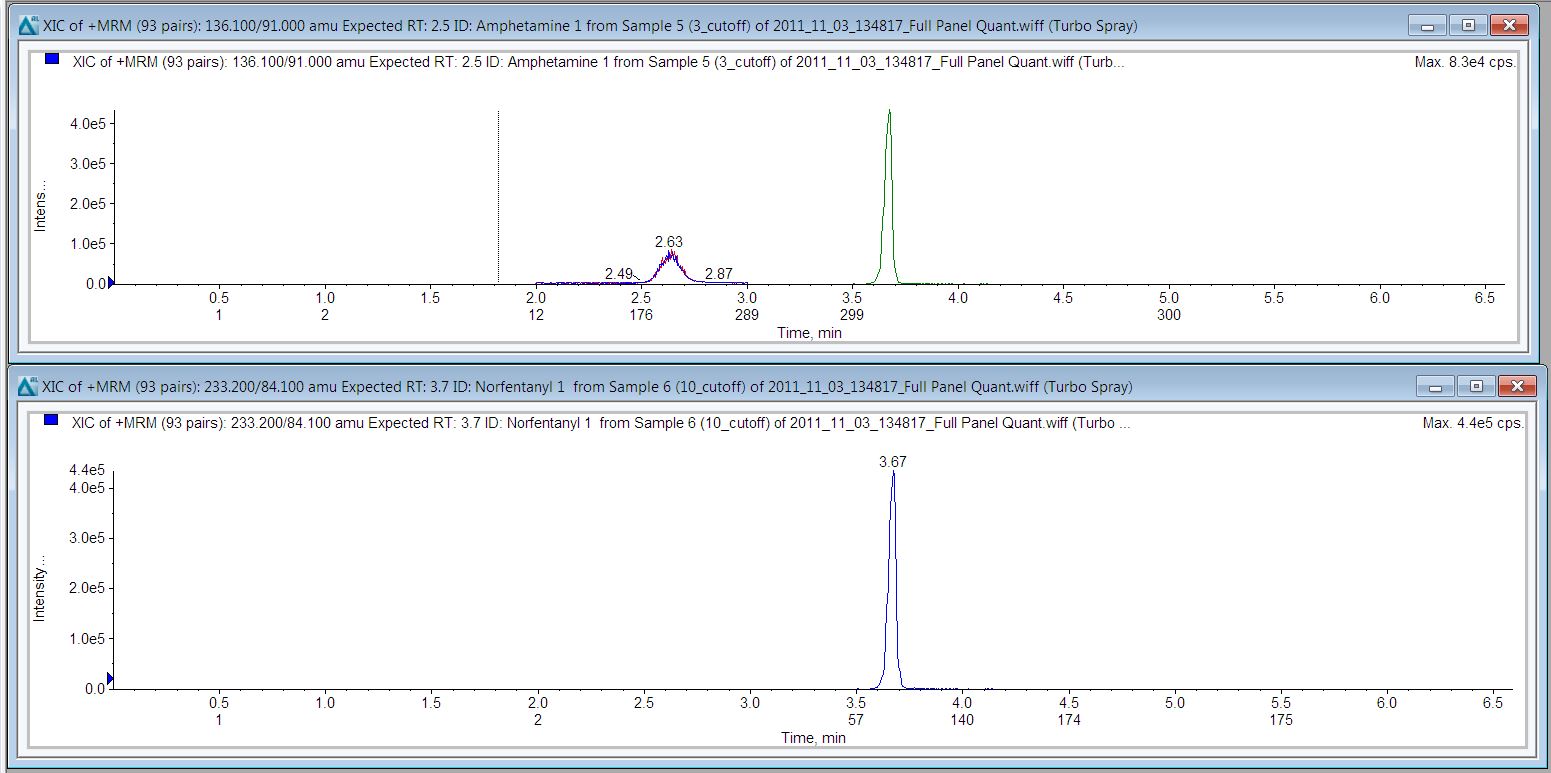

Overlaying two peaks

To overlay a third chromatogram, select the pane with the two chromatograms overlaid (top pane, below), click on Overlay, and then select the next XIC to be added (bottom pane, below).

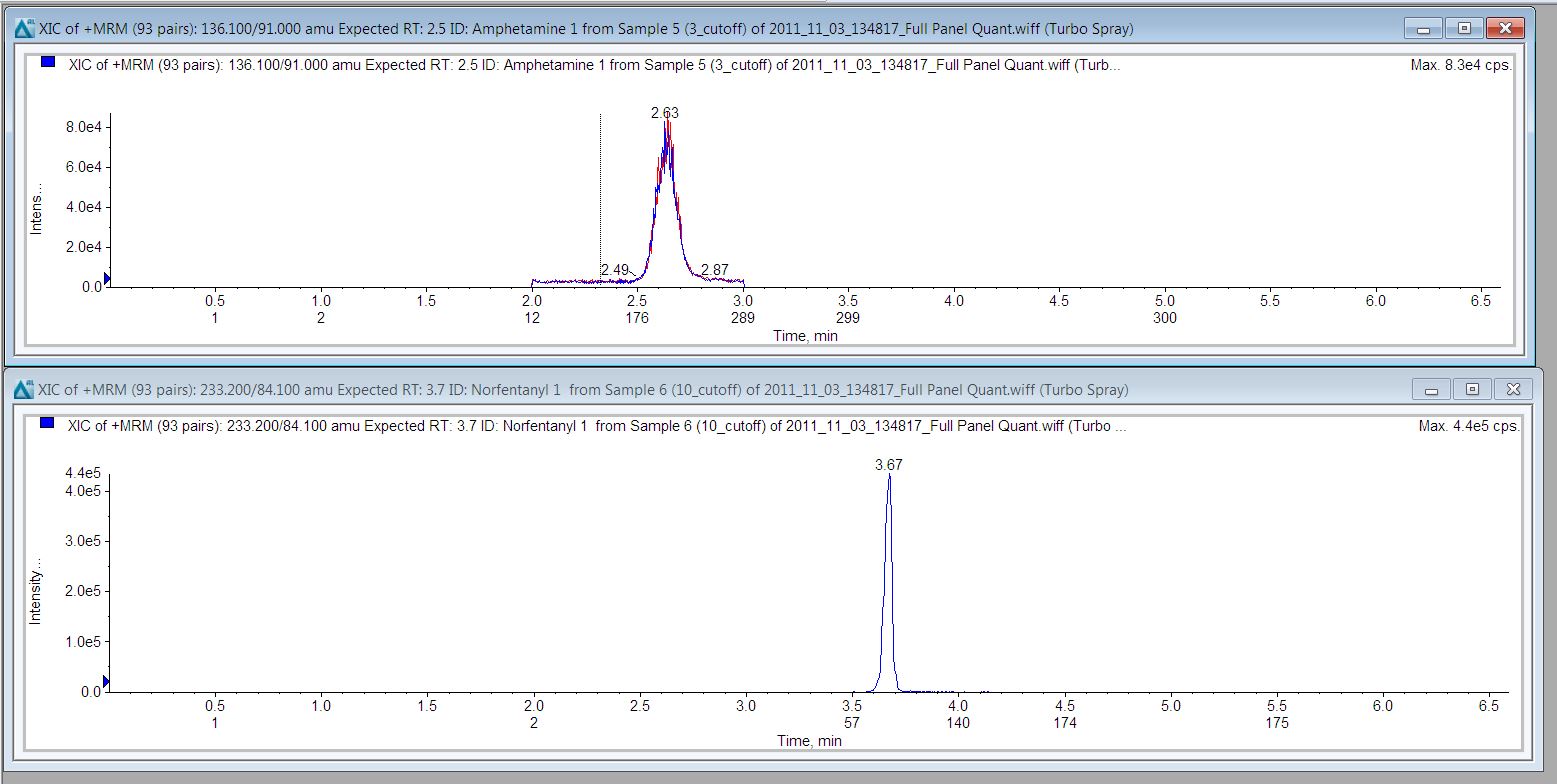

Overlay three peaks

The third chromatogram will appear in the screen with the first and second XICs (top pane, below).
Overlay includes three
