Applying Results Table Column Settings to Another Results Table in SCIEX OS Software

For research use only. Not for use in diagnostic procedures.

Answer

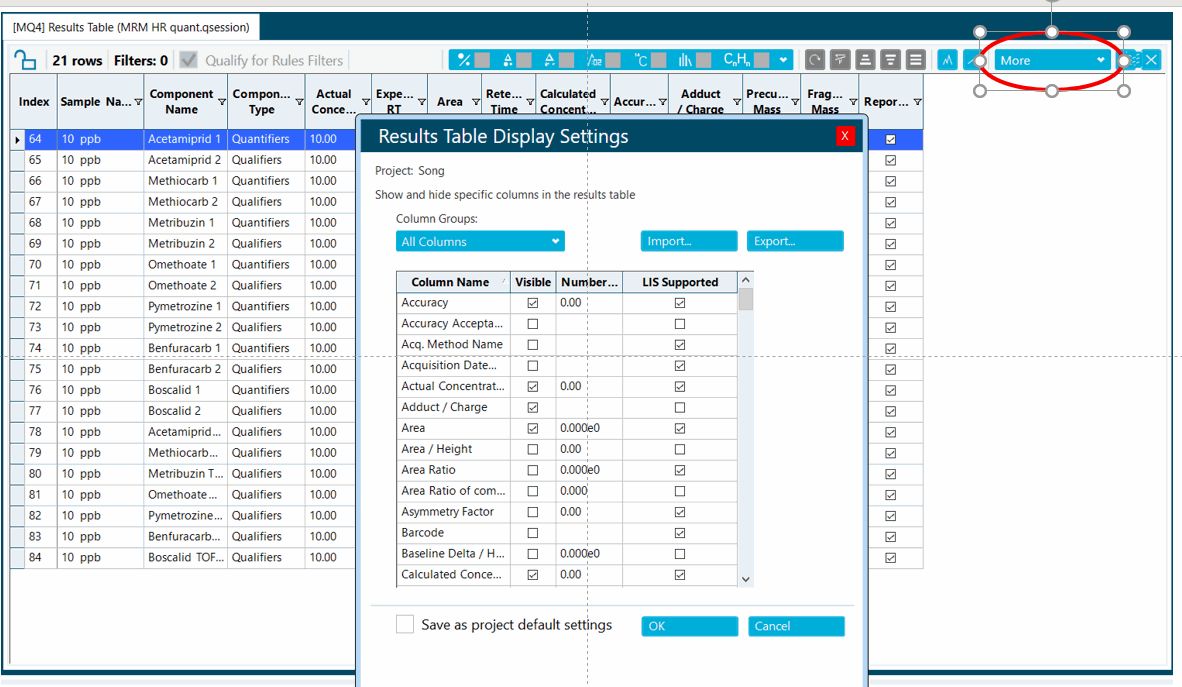

To apply the custom result table column settings from one Sciex OS software results table to another, open a results table in the Analytics mode.  Then set the custom column order that you want to be displayed by clicking the More button, and then choose Table Display Settings.

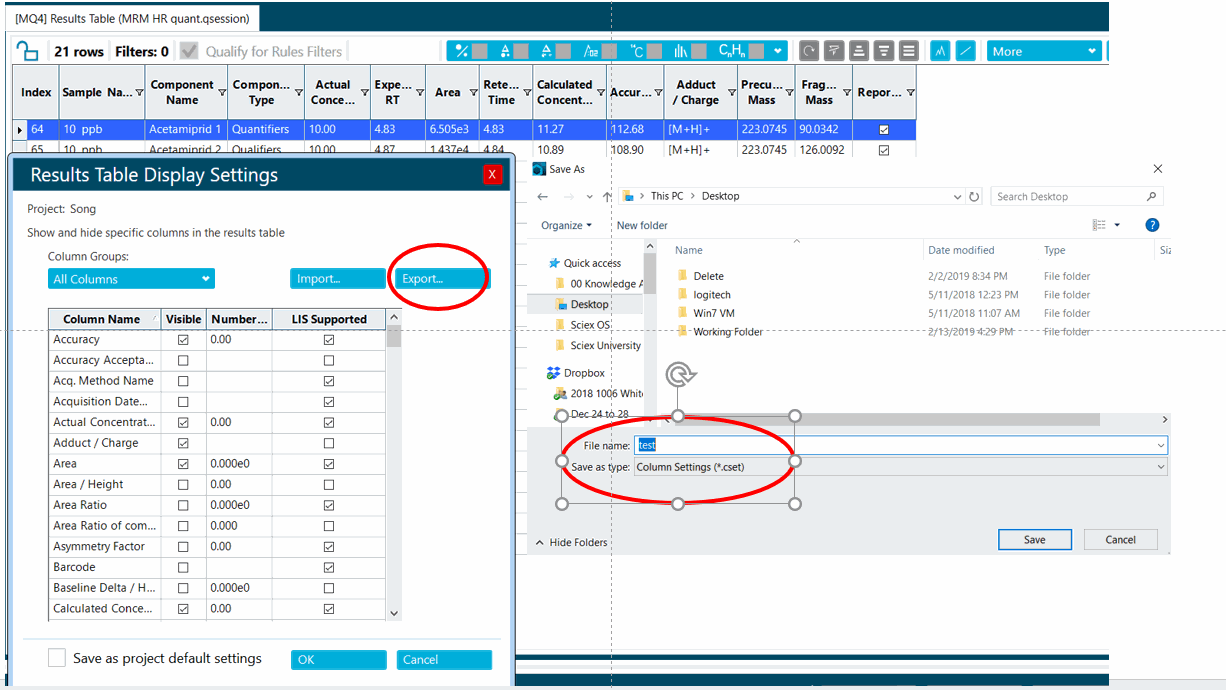

Click Export, and save the custom settings to a file (.cset).


Process a new results table. Click More to choose Table Display Settings, click Import. Then choose the .cset file with the results table settings that were saved earlier. Click Open and OK. The new results table should display the custom settings from the previous results table.
