Using the SCIEX Triple Quad™ 3500 LC-MS/MS System
Zhai Nannan, Jia Yanbo, Jin Wenhai
SCIEX, China
Poisoning incidents of animals due to mycotoxin in their feed has become frequent enough to warrant the creation of regulatory requirements for detection. Protecting animal health as well as the safety of the world’s food supply is critical. Here a complete method was developed for the detection of 30 mycotoxins in animal feed using the SCIEX Triple Quad 3500 system. Using optimized sample preparation, fast chromatographic run times and a single MS method with polarity switching, quantitative results were obtained that meets regulatory requirements.
In recent years, animal mycotoxin poisoning incidents have occurred frequently in China and around the world1, causing huge economic losses to the agriculture industry. Feed mycotoxin contamination is an ongoing global problem that seriously affects animal health and production and poses major food safety hazards. Controlling the mycotoxin contamination of animal feed is a common goal in the industry.
On October 14, 2017, China’s General Administration of Quality Supervision, Inspection and Quarantine and the National Standardization Management Committee issued the “Feed Hygiene Standards”2 (GB13078-2017), which stipulates seven mycotoxin limit requirements in animal feed. This added to the list of global regulations of mycotoxins in feed that already exists in the European Union and the United States. This is significant, as China’s role in the global food supply is ever-growing. To not only meet regulatory guidelines, but to also maintain consumer protection and promote safe practices during the growth of agriculture and animal husbandry industries, it is important to have methods that monitor for known mycotoxins outside of the regulatory guidelines.
This work focuses on the detection of mycotoxins in animal feed. On the SCIEX Triple Quad 3500 System, a rapid determination method of 30 mycotoxins was established. This method provides a simple and quick solution for the detection of mycotoxins in the feed.
Sample preparation: Samples were prepared using solid phase extraction (SPE) with a Cleanert MC (400 mg/2 mL) or a Cleanert SAX SPE Column (500 mg/6 mL) from Agela Technologies.
Sample extraction:
Sample cleanup:
Method 1 — for fumonisin B1, B2, B3 and ochratoxin:
Method 2 — for the other 26 toxins

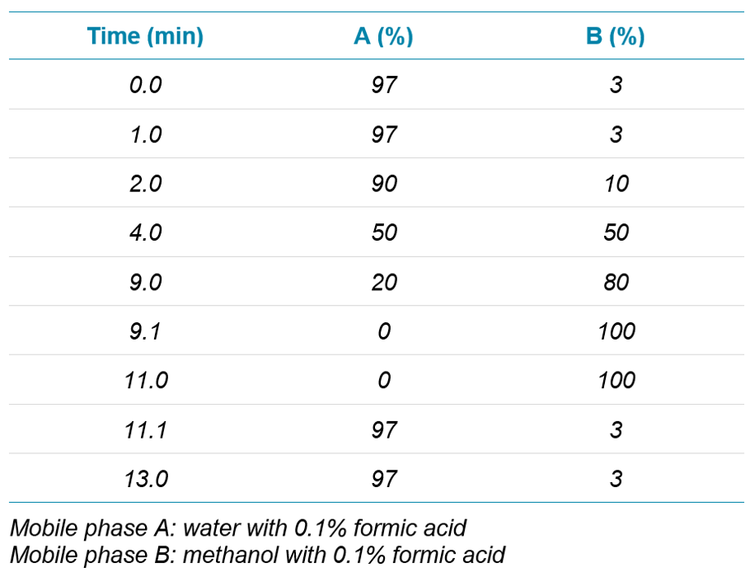

Chromatography: Sample separation was performed using an ExionLC™ System and a Phenomenex Kinetex C18 column (100 × 3.0 mm, 2.6 µm). The flow rate was 0.5 mL/min, the column temperature was held at 40 °C and the injection volume was 20 µL. The gradient elution program is listed in Table 1.

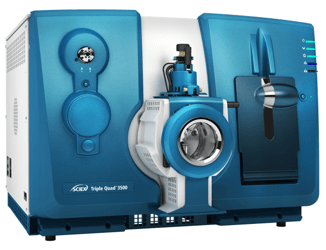

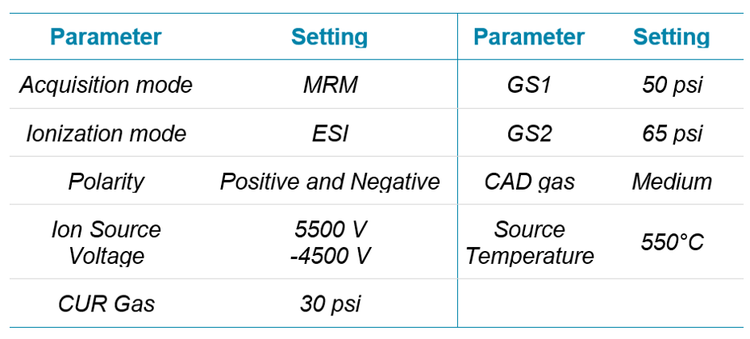

Mass spectrometry: MS analysis was performed on the SCIEX Triple Quad 3500 System equipped with the Turbo V™ Ion Source. Acquisition parameters are detailed in Table 2.
Using standards, the MRM transitions and MS parameters for the 30 mycotoxins were optimized. Then the chromatographic conditions for the analysis were optimized to provide fast run times and good separation (Figure 1). Polarity switching was used to enable sensitive detection of all 30 compounds in a single injection, with a total run time of 13 minutes.
Two different sample preparation strategies were explored to ensure the highest efficiency and recovery for all 30 mycotoxins. Best results were obtained using a combination of two different SPE columns, as described in the methods section.

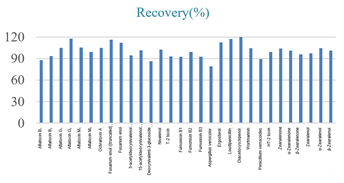

After optimization, recovery experiments were performed to characterize the final sample preparation strategy, where the extraction recovery rate of all compounds was found to be within 70–120% (Figure 2).

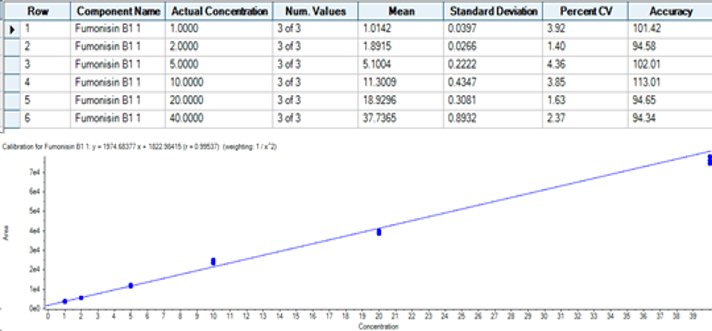

Calibration curves were generated to determine the lower limits of quantification (LLOQs) for each of the 30 mycotoxins. Very good linearity and reproducibility were obtained across the dataset. Example data for Fumonisin B1 is shown in Figure 3. Good linearity was observed across the interrogated concentration range of 1–40 µg/kg, with %CV across replicates <5%.

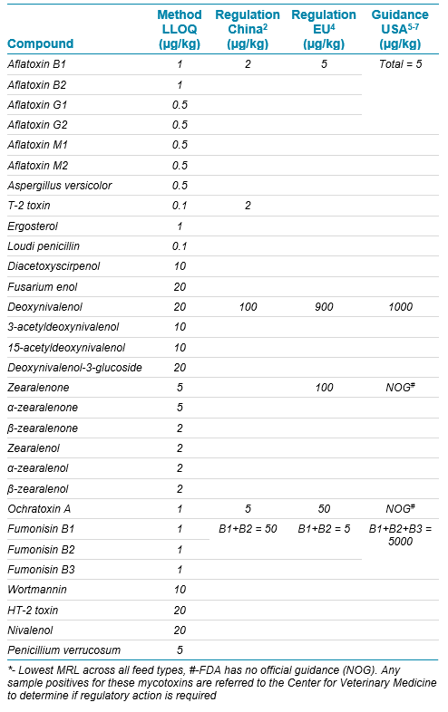

LLOQs for each of the compounds are outlined in Table 3, along with regulatory requirements from China, the EU and the US. The sensitivity of this complete method fully meets all outlined requirements for the detection sensitivity of mycotoxins in animal feed, and can monitor a suite of mycotoxins that are not yet regulated.
A complete method was developed for the detection of mycotoxins in animal feed using the SCIEX Triple Quad 3500 System. Sample preparation was optimized for good recoveries of the 30 analytes from matrix, with 70–120% recovery. Single injection workflow with polarity switching enabled detection of all 30 mycotoxins within 13 minutes with high efficiency and high throughput. The method meets regulatory standards, while adding the ability to quantify mycotoxins that currently are not part of animal feed regulations for additional safety and security for consumers.
