Methods
Sample preparation: Exons 3 and 7 of the zebrafish (Danio rerio) mvp gene were targeted using CRISPR-Cas92 (Figure 2). Three biological replicates each of deyolked zebrafish 30 hours post fertilization embryos (300 per replicate) were prepared for wild type and mvp mutants. Samples were lysed using 50mM Tris-HCl, 100mM NaCl, 2% sodium deoxycholate. Proteins were reduced, alkylated, and digested first with Lys-C followed by trypsin. Resulting peptides were then cleaned-up using reverse phase chromatography.
Chromatography: Separation of the digested samples was performed on a NanoLC™ 425 System (SCIEX) operating in trap elute mode. Peptides were first trapped on a 350µm x 0.5mm trap, then eluted onto a 75µm x 15cm column (both packed with ChromXP™ column (SCIEX)). Elution was done with a long two-phase gradient (10-18% solvent B in 55 min, then 18-30% in next 60 mins). Total protein injected on column was 2 µg.

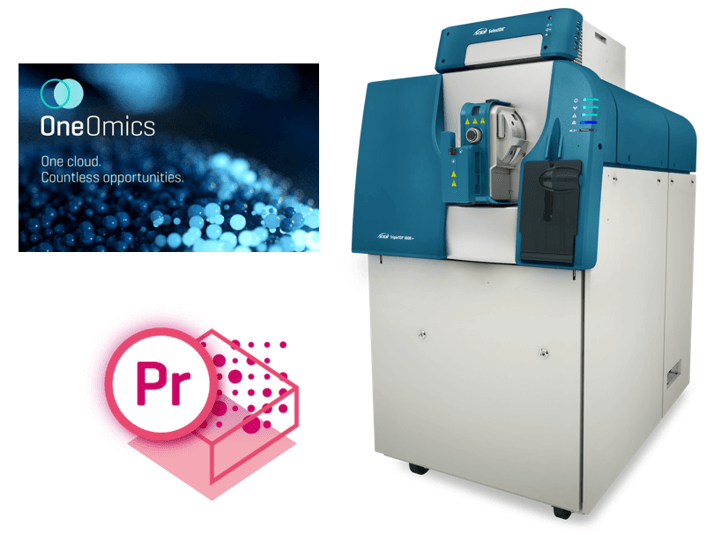

Mass spectrometry: The MS analysis was performed on a TripleTOF® 6600 System (SCIEX) using a NanoSpray® Source III. Data dependent acquisition (DDA) was performed using 50 MS/MS per cycle with 50 msec accumulation time. Variable window SWATH® Acquisition methods were built using 120 variable windows with 25 msec accumulation time.
Data processing: A spectral library was created by processing 3 DDA runs from a pool of wild type samples with ProteinPilot™ Software 5.0 using a thorough search. SWATH Acquisition data was processed using the OneOmics™ Suite in the SCIEX Cloud Platform.3,4 Manual data processing was performed using PeakView® Software.
Confirming protein level mutation of the edited gene
Two different mutant indel alleles were generated for this study by a CRISPR-induced frameshift and were predicted to generate two non-functional truncated forms of MVP in the mutant lines; MVP 3-/- and MVP 7-/- (Figure 2). Observation of the mutant embryos revealed no significant phenotype change in either mutant. Additionally, mRNA analysis indicated significant mRNA decay of one allele, but not the other (MVP 7-/- ) mutant (Figure 1, top). The lack of an observable change in phenotype in addition to the ambiguous mRNA data, made protein-level validation critical.
Typically, protein-level validation would be accomplished using an antibody-based technique such as western blot or ELISA. However, in this case, no antibody was available for zebrafish MVP. Instead, protein level analysis was performed by mass spectrometry using SWATH Acquisition for quantitation of all proteins within the mutant lines. The results indicated that MVP protein levels were, in fact, negligible for both mutant lines (Figure 1, bottom).
Further scrutiny of the data indicated loss of peptides across the entire MVP protein sequence. Within the SWATH Acquisition, 7 peptides across the entire MVP sequence were compared between the wild type and two mutant alleles. All 9 peptides were of significantly lower abundance within the mutants relative to the wild type (Figure 3). Even peptides within portions of the mutant MVP non-truncated sequences were also found to be of significantly lower abundance. This confirms that the CRISPR-Cas9 editing successfully targeted the gene and resulted in the loss of the entire MVP protein, and not just the portion located beyond the CRISPR site. This indicates instability of the truncated mutant MVP protein of both alleles, and thus abolition of the whole protein had been accomplished.
A global view of all proteins impacted by the edited gene
A huge advantage of SWATH Acquisition for confirmation of genome editing at the protein level is that large numbers of proteins are analyzed in each experiment and not simply the protein product of the gene editing event. This allows a comprehensive picture of any biological changes the editing may induce. In this study, about 3800 proteins were quantified across the 6 samples (3 biological replicates each for wild type and mutant). As shown in Figure 4, within the MVP 7-/- mutant, a subset of 65 proteins were significantly over expressed while 93 proteins were under expressed compared with the wild type.
A Venn diagram comparison of the number of proteins that were significantly changed within each mutant is shown in Figure 5. Only a small number of the same proteins were up-regulated (11) and down-regulated (18) for both mutants, and the number of unique up-regulated proteins and unique down-regulated proteins was higher for the MVP 7-/- mutant.
Investigating the induced biology from gene knockdown
To gain further knowledge of the impact of the gene editing event, the proteins that were significantly up- and down-regulated were more closely investigated. Figure 6 shows the biological process information associated with the proteins over- and under-expressed for the MVP 7-/- mutant. While the MVP protein currently has no known function, proteins belonging to multiple groups of related processes are affected by the gene editing including cell adhesion, inflammation, and cytoskeleton processes. However, there is emerging evidence that MVP may play a role in infection or stress responses. This could explain why minimal changes were observed in the mutant phenotypes as there was no cellular stress invoked in the zebrafish prior to sample isolation.
Conclusions
Gene editing techniques have come a long way. With the advent of the CRISPR-Cas9 technique, genes can now be edited with incredible accuracy. mRNA experiments are typically used to verify gene editing but often mRNA and protein levels do not correlate. Thus, confirmation at the protein level is absolutely critical. With SWATH Acquisition, not only is protein level verification easily accomplished, but the additional advantages and information that SWATH Acquisition provides makes this technique ideally suited for deeply exploring any organism after gene editing experiments.
- SWATH Acquisition verifies gene editing at the protein level (mutations, knockouts, truncations, etc.) without the need for antibodies
- No costly delays waiting for antibody production
- Easily applied across diverse organisms
- Fast experimental protocol allows research to move more rapidly
- Single LC-MS method for investigating all samples
- Besides verifying the protein product of the gene editing event, additional information is obtained around global changes in biology that are induced
- Global quantitative profiling measures large numbers of proteins, including additional protein expression differences due to the effects of the gene editing
- Linked ontology information to all affected proteins provides further understanding of the biological implications of the edited gene
- SWATH Acquisition is rapid and comprehensive
- A digital archive is created. No need to re-run samples when new questions arise
- Can be used for high throughput profiling for screening arrays of CRISPR experiments.
